Product Model

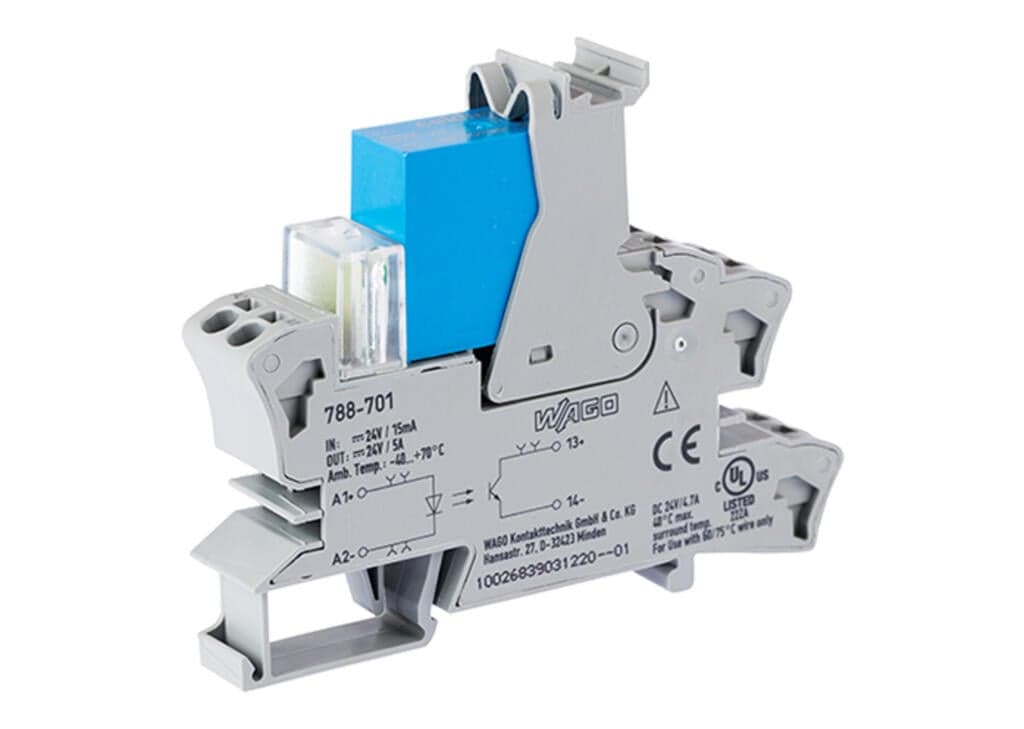

788-701
Selling Points
- 1Reliable 2-Wire Connection: Secure and efficient 2-wire connection for easy installation.
- 2Wide Voltage Range: Handles input voltage of 24VDC and output voltage of 3-30VDC.
- 3High Current Capacity: Supports continuous current of up to 5A.
- 4Durable Design: IP20 protection rating ensures reliable operation in various environments.
- 5Easy Mounting: Designed for DIN-35 rail mounting with a compact 15mm width.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 15?mm?/ 0.591?inches | Height | 86 mm / 3.386 inches |
Depth from upper-edge of DIN-rail | 64 mm / 2.52 inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.681MJ | Weight | 47g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Standards/specifications | EN 61000-6-2 |
WAGO Basic Relay | 788-751 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-26-15-03 | eCl@ss 9.0 | 27-26-15-03 |
ETIM 9.0 | EC001504 | ETIM 8.0 | EC001504 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 15?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4045454743871 | Customs tariff number | 8536509065 |
RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range (low level) | DC?0 … 2.5?V | Input voltage range (high level) | DC?15 … 30?V |
Nominal input current at U<sub>N</sub> | 10?mA | Circuit type | 2-wire connection |
Limiting continuous current | 5?A | Nominal output voltage | DC?24?V |
Output voltage range | DC 0 … 30?V | Voltage drop | ≤ 0.3?VDC |
Turn-on time | ≤?50?μs | Turn-off time | ≤?600?μs |
Switching frequency | ≤?100?Hz | Status indicator | Red LED |
Specifications may be subject to change without notice
