Product Model

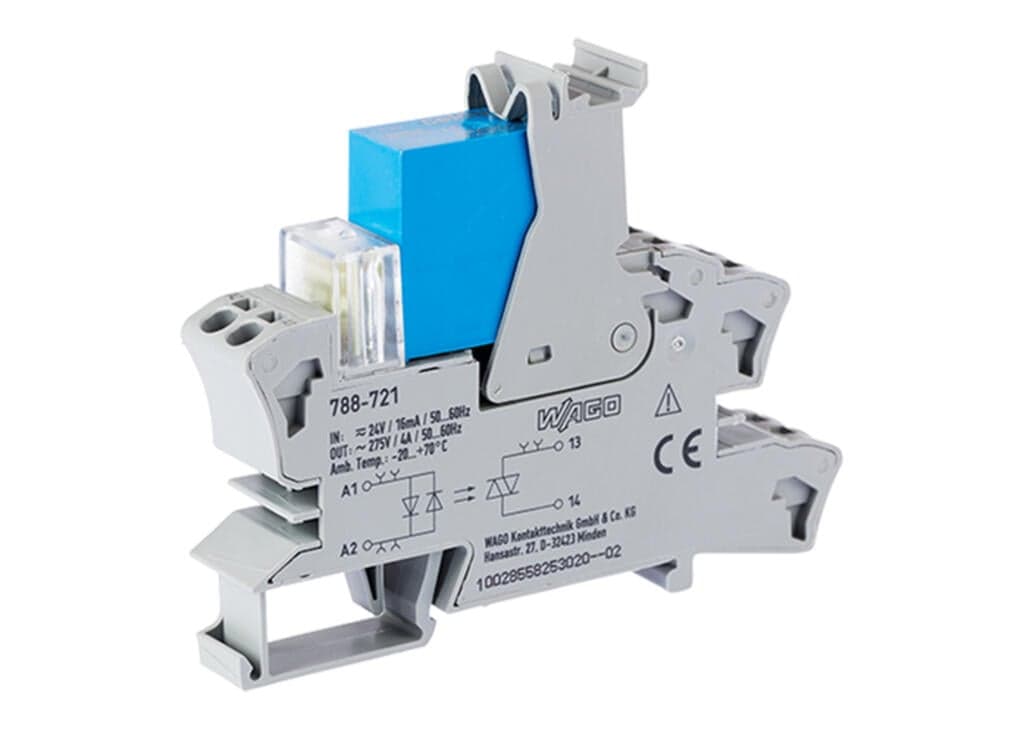

788-721
Selling Points
- 1Zero-voltage switching for safe operation.
- 22-wire connection simplifies installation.
- 3DIN-35 rail mounting for easy integration.
- 4Red status indicator for real-time monitoring.
- 5IP20 protection rating for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 15?mm?/ 0.591?inches | Height | 86 mm / 3.386 inches |
Depth from upper-edge of DIN-rail | 64 mm / 2.52 inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Fire load | 0.671MJ | Weight | 49.4g |
Ambient temperature (operation at U<sub>N</sub>) | -20 … +70 °C | Ambient temperature UL (operation at U<sub>N</sub>) | -20 … +40 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Standards/specifications | EN 61000-6-2 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 15?(1)?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4045454945961 |
Customs tariff number | 8536509065 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 63427db5-b86e-434d-86c8-062666b3579f |
SCIP notification number (Belgium) | 0c27a158-3bbf-44ec-837d-3f103179e318 | SCIP notification number (Bulgaria) | 2a174cb2-3a25-4796-a3c9-91b318d6d639 |
SCIP notification number (Czech Republic) | 64f1253a-ddba-4a48-bf70-812e9fe3d938 | SCIP notification number (Denmark) | 2eb5d9bb-f88e-4a13-9a94-7a9356271e28 |
SCIP notification number (Finland) | 254e83f1-eff0-4e92-b117-3d7a40b2aac3 | SCIP notification number (France) | 2b6becec-06ea-42b6-8c81-7d34d7122c51 |
SCIP notification number (Germany) | e3b40cfe-6a3c-40bc-b95e-5922ca557b95 | SCIP notification number (Hungary) | 6050c7f7-e8e2-4656-a1c3-db952040cb35 |
SCIP notification number (Italy) | f3ed14c9-40df-4b3d-8c5b-076bedc28cca | SCIP notification number (Netherlands) | 640be926-f0fd-435f-b3f3-2b5930eaad43 |
SCIP notification number (Poland) | 34025254-c517-4e99-a060-0854e22f7956 | SCIP notification number (Romania) | 06e2bc49-8160-4f24-b0c5-910f04978514 |
SCIP notification number (Sweden) | a28882d0-2c0e-46d8-af1c-9c27c7724527 | Nominal input voltage U<sub>N</sub> | AC/DC?24?V |
Input voltage range (low level) | AC/DC?0 … 2.5?V | Input voltage range (high level) | AC/DC?15 … 30?V |
Nominal input current at U<sub>N</sub> | 10?mA | Circuit type | 2-wire connection |
Limiting continuous current | 4?A | Nominal output voltage | AC?230?V |
Output voltage range | AC 12 … 275?V?(50/60 Hz) | Voltage drop | ≤ 1.1?VAC |
Turn-on time | ≤?10?ms | Turn-off time | ≤?10?ms |
Switching frequency | 50?Hz?/ 60?Hz | Status indicator | Red LED |
