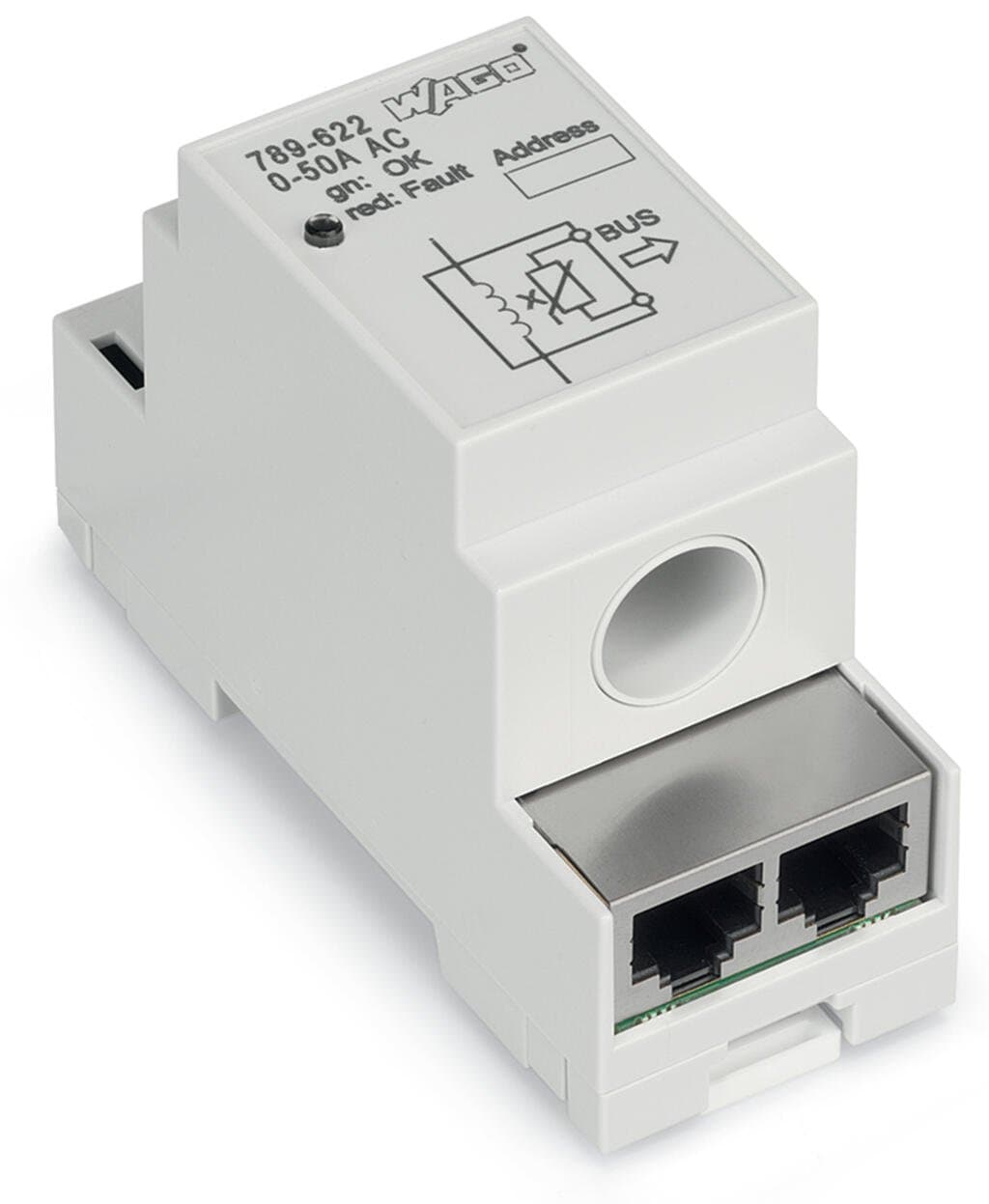

Product Model
789-622
Selling Points
- 1Precise Current Measurement: Accurately measures current signals with high precision.
- 2Robust DIN-Rail Mounting: Designed for easy installation on DIN-rails, ensuring secure and space-efficient mounting.
- 3Easy Integration: Seamlessly integrates with various automation systems, simplifying your setup process.
- 4Reliable Performance: Built with robust components to ensure reliable operation in demanding environments.
- 5Compact Design: Compact size makes it ideal for space-constrained applications, maintaining high performance in a small footprint.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Protection type | IP20 | Feedthrough for measurement conductor | ? 15?mm |
Connector | RJ-45 | Width | 35?mm?/ 1.378?inches |
Height | 90?mm?/ 3.543?inches | Depth from upper-edge of DIN-rail | 55?mm?/ 2.165?inches |
Mounting type | DIN-35 rail | Housing design | DIN-rail-mount enclosure |
Fire load | 0.283MJ | Weight | 77.2g |
Ambient temperature (operation) | -20 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | DIN EN 50178 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-23 |
eCl@ss 9.0 | 27-21-01-23 | ETIM 9.0 | EC002475 |
ETIM 8.0 | EC002475 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8543704500 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | bb694884-3b75-466d-b25c-d1508336f8c8 | SCIP notification number (Belgium) | 9608bd87-8285-473d-9ae7-f40452779e22 |
SCIP notification number (Bulgaria) | bff72e14-4f7f-464d-aeb1-9ae6795be378 | SCIP notification number (Czech Republic) | 2e7080d2-3286-4942-b074-2c2d040cfab3 |
SCIP notification number (Denmark) | a2a89f30-d51c-4f3f-a9cc-67a8c17949c6 | SCIP notification number (Finland) | c6281fb7-616a-4a12-8929-e5946ee21b69 |
SCIP notification number (France) | e227b69f-504c-4880-bed4-bfc29c2e0b53 | SCIP notification number (Germany) | ed27cc37-e5e7-4e8f-886b-da3f5392e4d6 |
SCIP notification number (Hungary) | b7d62313-a72e-467e-9fd4-b28c10aeffbc | SCIP notification number (Italy) | 69fd3825-e613-4b1f-9375-abd05d68b9ce |
SCIP notification number (Netherlands) | 4bcea46f-9970-43bc-b839-af586e763f40 | SCIP notification number (Poland) | effb8a89-418f-419f-ae7d-852495d291b2 |
SCIP notification number (Romania) | 976b857e-0e78-4294-a00e-1d66170150f9 | SCIP notification number (Sweden) | 02f0ffe5-8218-4b40-a4df-b24cfa363753 |
Input signal type | Current | Resolution [bit] | 14bits |
Measured variable | Current | Input signal (A) | AC 0 … 50?A |
Number of devices (max.) | 32 | Bus length (max.) | ≤?1200?m |
Terminating resistor | 150 Ω (can be activated via DIP switch 1) | Communications | Modbus RTU |
Interface | RS-485 | Transmission channels | Half duplex; 8-bit data; 1 stop bit |
Parity | Even | Transmission rate | 19.2?kBd |
Transmission error (typ.) | 1 % (typ.); 3 % (max.) of upper-range value (at room temperature) | Temperature coefficient | ≤ 0.01 %/K |
Nominal supply voltage U<sub>S</sub> | DC?24?V | Current consumption at nominal supply voltage | ≤?8?mA |
Supply voltage range | 12 … 34 VDC |
