Product Model

789-912

Manufacturer

wago

Category

Interface Modules

Product ID

44581

In Stock
Last updated: 2025/4/29
View Specifications

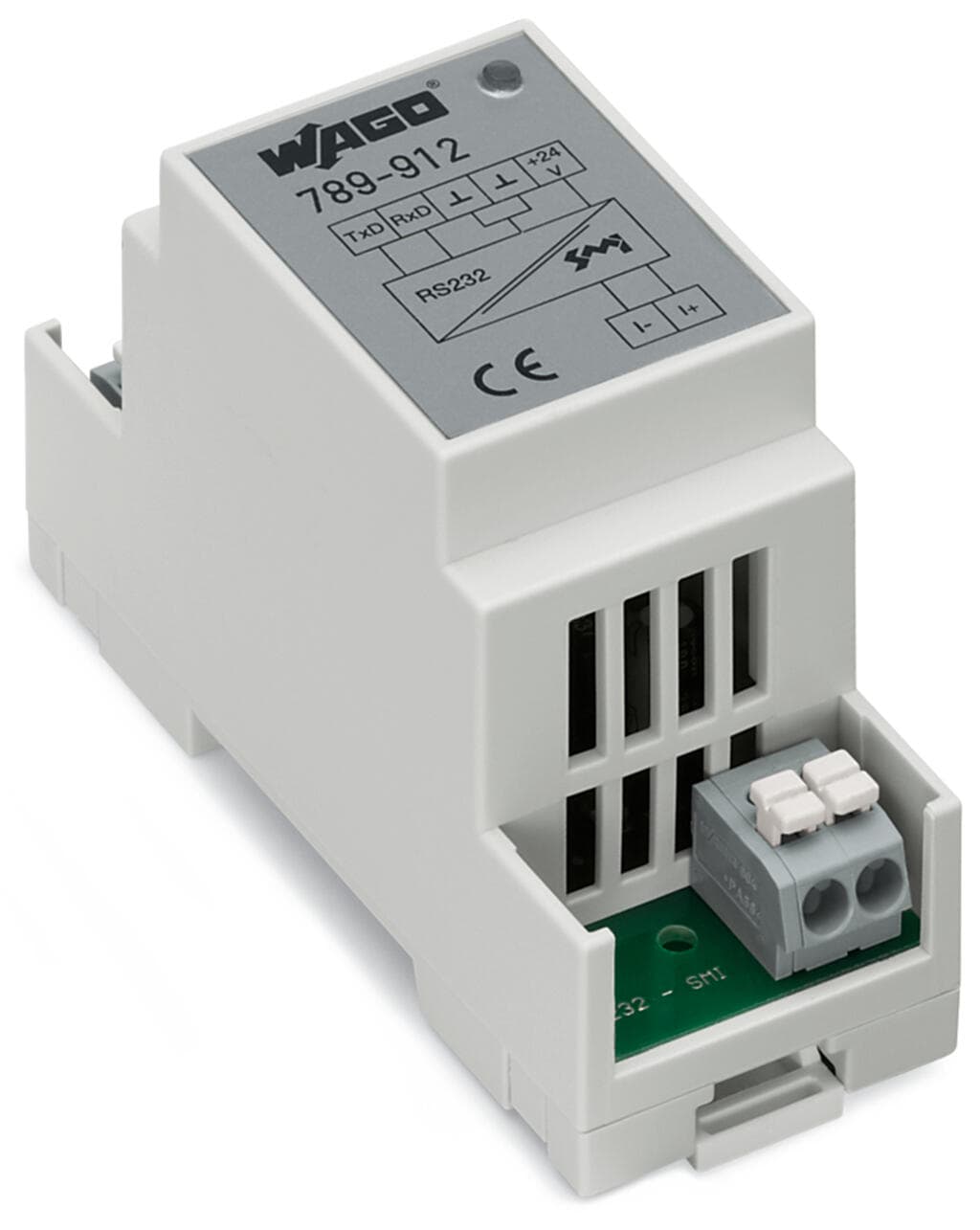

wago 789-912

Selling Points

  • 1DIN-35 Rail Mounting: Mounts easily on any DIN-35 rail for versatile installation.
  • 224VDC Power Supply: Operates with a nominal voltage of 24VDC, ensuring reliable power.
  • 3RS-232 Communication: Supports standard RS-232 interface for seamless data transmission.
  • 4SMI Compatibility: Compatible with up to 16 SMI drives, offering extensive connectivity options.
  • 5IP20 Protection: Features an IP20 protection rating, ensuring safe operation in various environments.
Product Details
789-912
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Nominal operating voltage
DC?24?V
Operating voltage range
±10?%
Current consumption at nominal supply voltage
≤?55?mA?(inside)
Number of SMI channels
1
Number of drives per channel
16
Status indicator
Green LED
Interface
RS-232 (interface input)
Specialty functions
SMI
Protection type
IP20
Connection technology
CAGE CLAMP?
WAGO connector
WAGO 804 Series
Solid conductor
0.5 … 2.5?mm2?/ 20 … 12?AWG
Fine-stranded conductor
0.5 … 2.5?mm2?/ 20 … 12?AWG
Strip length
10 … 11?mm?/ 0.39 … 0.43?inches
Cable length (max.)
350?m (SMI bus; ≤ 3 m for data and power supply cable, RS-232)
Width
35?mm?/ 1.378?inches
Height
90?mm?/ 3.543?inches
Depth from upper-edge of DIN-rail
55?mm?/ 2.165?inches
Mounting type
DIN-35 rail
Mounting position
any
Housing design
DIN-rail-mount enclosure
Weight
80g
Ambient temperature (operation)
0 … +50 °C
Ambient temperature (storage)
-25 … +85 °C
Standards/specifications
EN 50090-2-2
Product Group
6 (INTERFACE ELECTRONIC)
eCl@ss 10.0
27-37-12-16
eCl@ss 9.0
27-37-12-16
ETIM 9.0
EC000225
ETIM 8.0
EC000225
ECCN
NO US CLASSIFICATION
PU (SPU)
1?pcs
Packaging type
box
Country of origin
DE
GTIN
4050821100317
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption

Specifications may be subject to change without notice
