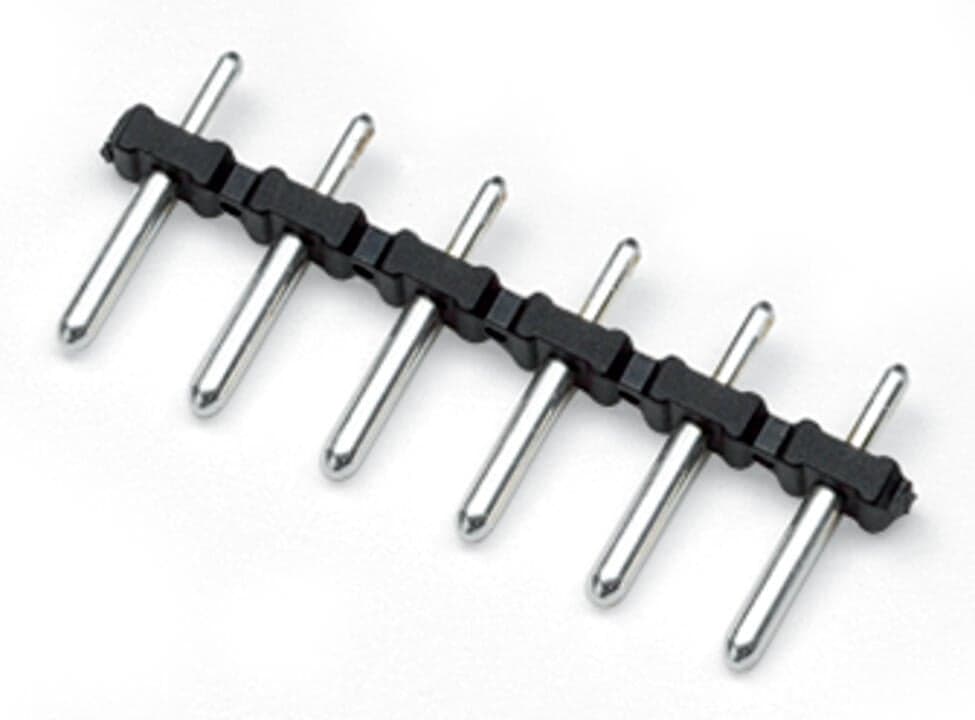

Product Model
806-907
Selling Points
- 1Durable construction with IP67 rating for maximum protection against dust and water.
- 2Compact design suitable for a wide range of electrical installations.
- 3Easy-to-use terminal connections ensure secure and efficient wiring.
- 4High-quality materials ensure long-lasting performance in harsh environments.
- 5Versatile application in both indoor and outdoor settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
Width | 34.8?mm?/ 1.37?inches | Height | 12?mm?/ 0.472?inches |
Depth | 2.7?mm?/ 0.106?inches | Solder pin length | 3.4mm |
Solder pin diameter | 1mm | Drilled hole diameter with tolerance | 1.3(+0.05)mm |
Suitable | Pin spacing: 5 mm / 0.197 inch | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mating direction to the PCB | 90° |
PCB contact | THT | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA46) |
Flammability class per UL94 | V2 | Weight | 0.9g |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918429191 |
Customs tariff number | 8536908585 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 7 |
Specifications may be subject to change without notice
