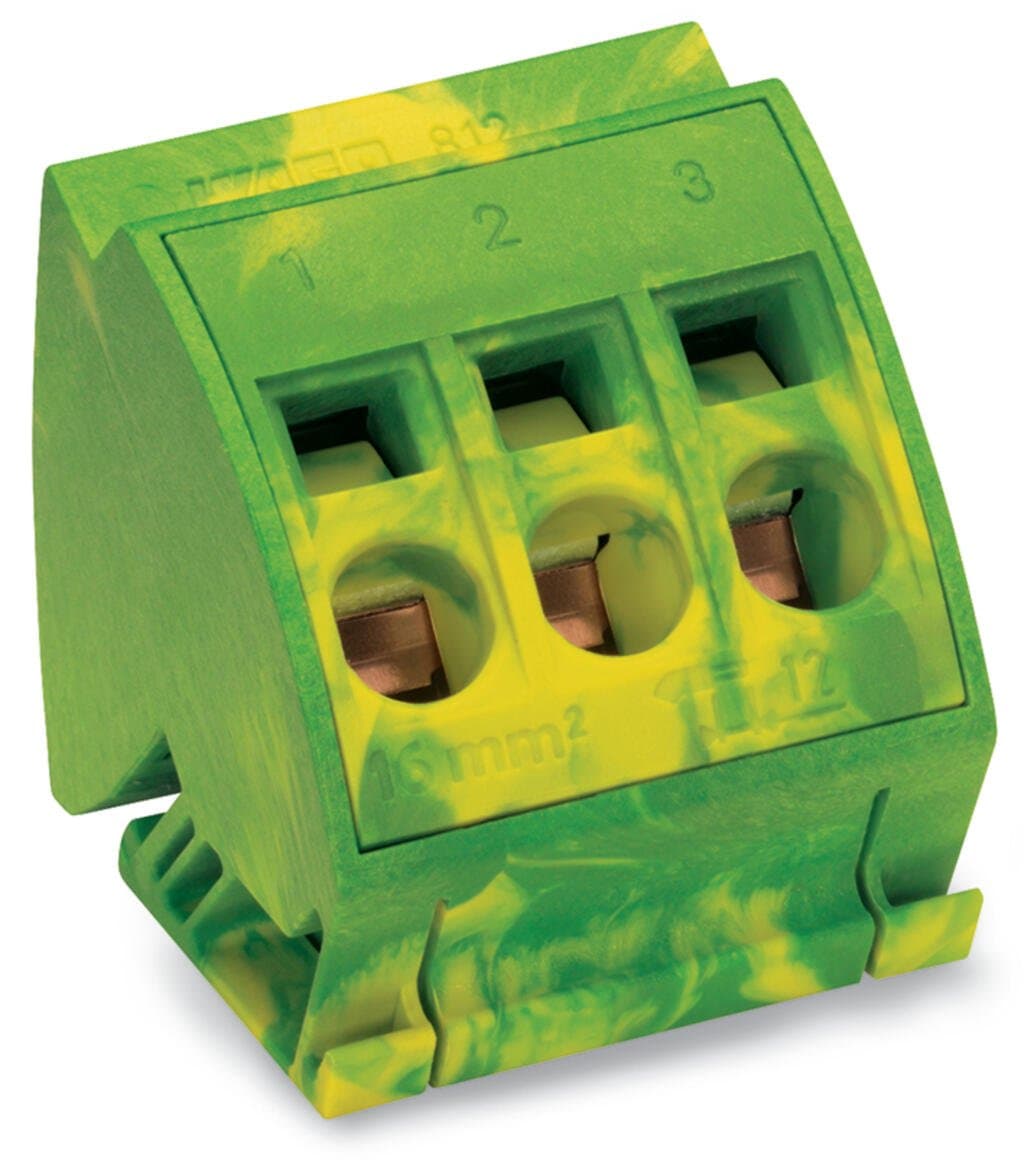

Product Model
812-110
Selling Points
- 1Reliable Connectivity: Connects 14 to 6 AWG wires with ease.
- 2Durable Construction: Made from high-quality polyamide (PA66) for insulation.
- 3Temperature Resistance: Operates within a temperature range of -5 to 60°C.
- 4Versatile Application: Suitable for various electrical applications with front-entry wiring.
- 5Efficient Clamping: Utilizes cage clamp terminals for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 3 | Total number of potentials | 1 |
Number of levels | 1 | Width | 38?mm?/ 1.496?inches |
Height | 42.5?mm?/ 1.673?inches | Depth | 43.5?mm?/ 1.713?inches |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.849MJ |
Weight | 42.7g | Continuous operating temperature | -35 … +85?°C |
Product Group | 12 (Matrix Patch Board) | eCl@ss 10.0 | 27-14-11-46 |
eCl@ss 9.0 | 27-14-11-46 | ETIM 9.0 | EC000001 |
ETIM 8.0 | EC000001 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4045454014889 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 1.5 … 16?mm2?/ 14 … 6?AWG |
Fine-stranded conductor | 1.5 … 16?mm2?/ 14 … 6?AWG | Strip length | 12?mm?/ 0.47?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
