Product Model
826-157
Selling Points

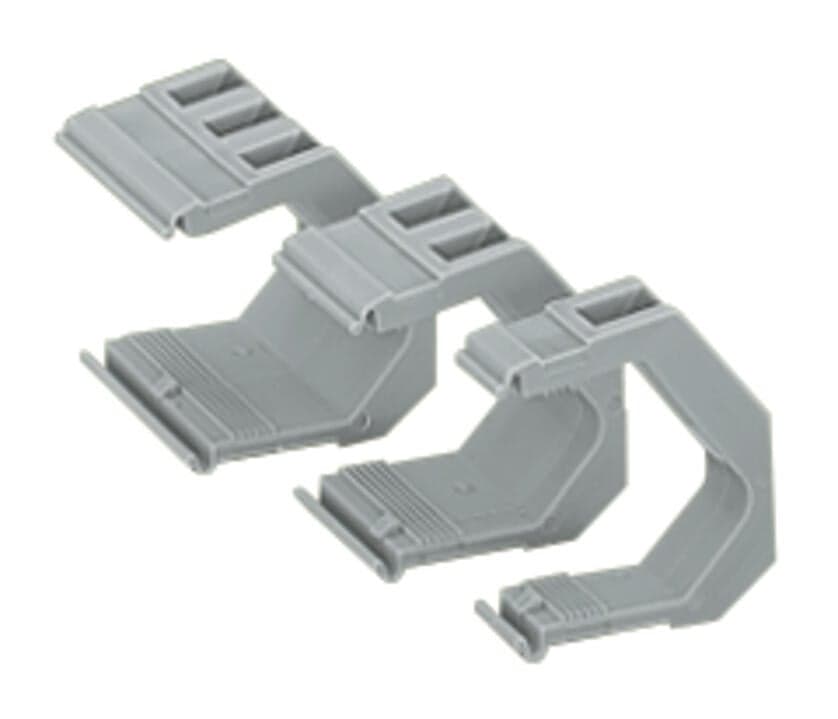

- 1The WAGO 826-157 retaining clip features a locking claw design for secure and reliable connections.
- 2Available in a durable gray color, suitable for various industrial applications.
- 3Designed to accommodate three poles, making it versatile for multiple connection needs.
- 4Compliant with ROHS regulations, ensuring environmental safety.
- 5Simple to mount, reducing installation time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Locking claw | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.107MJ | Weight | 2.6g |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332607186 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 |
Specifications may be subject to change without notice
