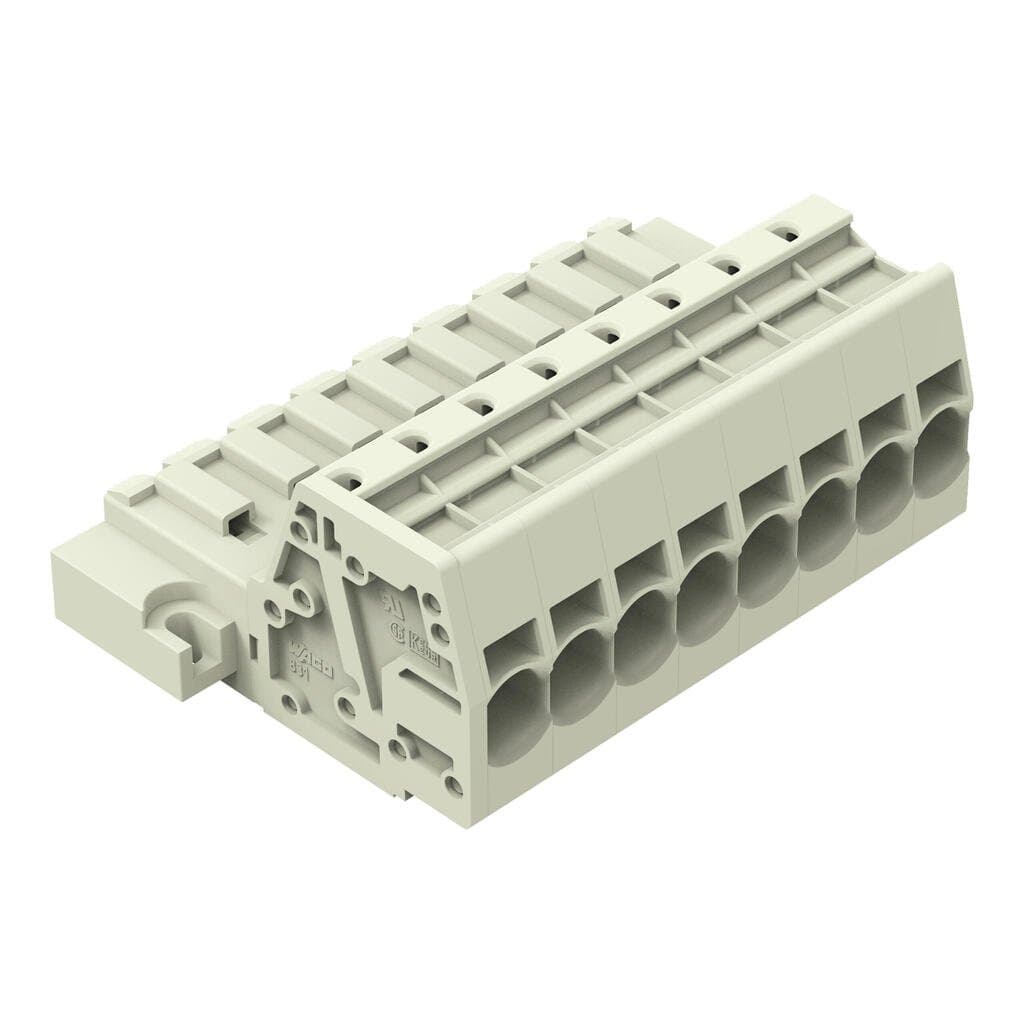

Product Model
831-3208/109-000
Selling Points
- 1High-quality components ensure long-lasting performance in demanding industrial environments.
- 2Easy installation with minimal setup time, reducing downtime and increasing productivity.
- 3Durable design withstands harsh conditions, including extreme temperatures and vibrations.
- 4Compatible with a wide range of industrial control systems for seamless integration.
- 5Robust connectivity options for efficient data transfer and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 8 | Total number of potentials | 8 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 7.62?mm?/ 0.3?inches | Width | 76.6?mm?/ 3.014?inches |
Height | 27.6?mm?/ 1.087?inches | Depth | 46?mm?/ 1.811?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Threaded flange | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.703MJ |
Weight | 54.9g | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 12?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966091588 |
Customs tariff number | 8536694040 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | a680d3fa-b994-437d-b486-7df97cf576c8 | SCIP notification number (Belgium) | cf6b364b-3c47-4d77-a83f-3ee748900838 |
SCIP notification number (Bulgaria) | 049abc27-0a82-4e15-8df1-0341891bc22a | SCIP notification number (Czech Republic) | 8533f2bc-1af5-45bf-b932-a83b16c4211d |
SCIP notification number (Denmark) | 21321c62-2e44-4ddc-a621-6033df93f29f | SCIP notification number (Finland) | b84c86b0-aea1-4d64-bc69-bf43c780ef39 |
SCIP notification number (France) | c0a6deaf-81e9-479e-ad9e-8aa51ddef18f | SCIP notification number (Germany) | 4aa4ed0e-2dc5-4a0d-badb-8b8b3d9f2a4e |
SCIP notification number (Hungary) | 00762379-e3e6-4800-b301-61c2c92e6bc2 | SCIP notification number (Italy) | f215e452-5edd-4a74-8b65-c16ab25e5fcb |
SCIP notification number (Netherlands) | 661a1f08-639c-4478-82e7-2d20bd875f44 | SCIP notification number (Poland) | a585326a-23af-4d41-8f95-d9b347febc1c |
SCIP notification number (Romania) | 5bc1467a-150c-4192-80dc-0d7ad00c2f87 | SCIP notification number (Sweden) | 3cf542d5-ffe0-432c-b9e4-9d30f878b221 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
Rated surge voltage (II/2) | 8kV | Rated current | 41A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 42A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 41A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Actuation direction 1 | Operation parallel to conductor entry | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Number of poles | 8 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
