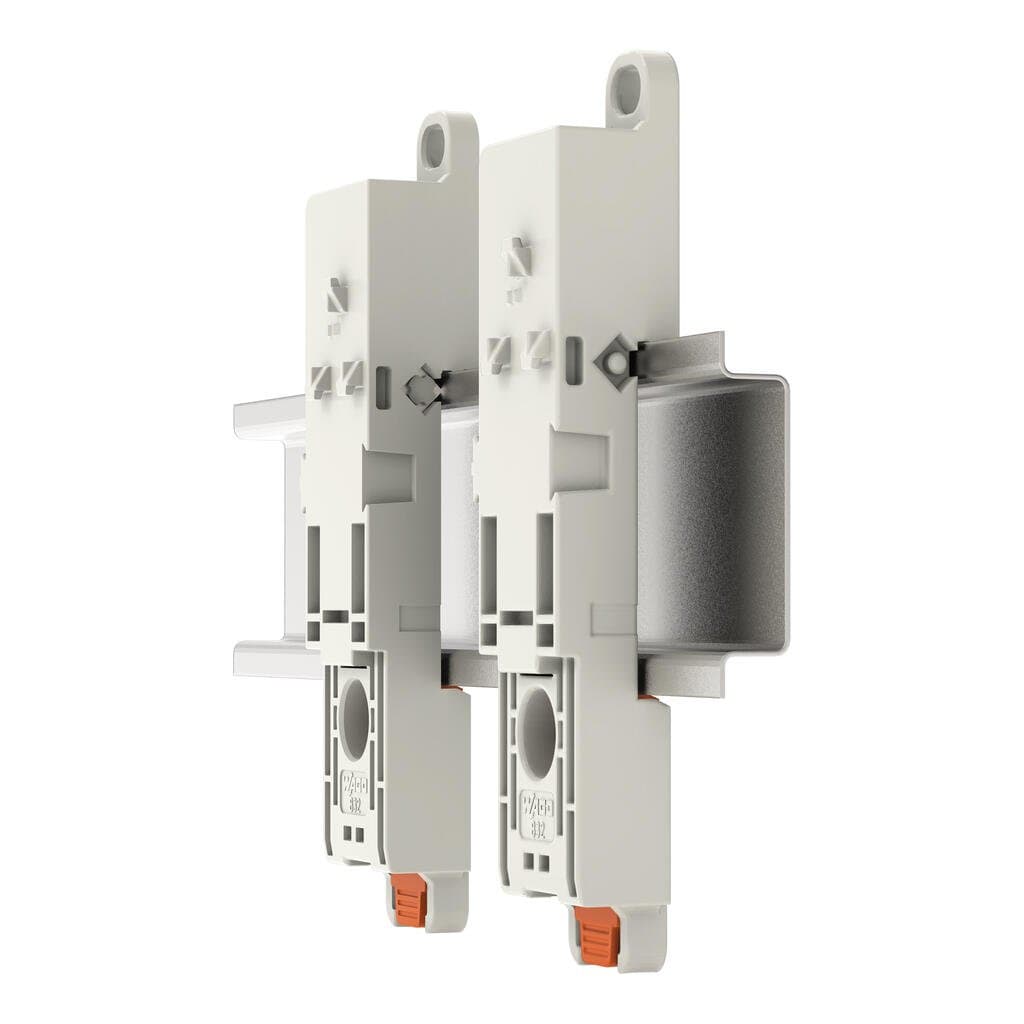

Product Model
832-1032
Selling Points
- 1Snap-on mounting for both male and female connectors, ensuring flexible wiring configurations.
- 2Tool-free pluggable solution for quick and secure connection to DIN-35 rail or flat surfaces.
- 3Made from high-quality materials, including polybutylene terephthalate (PBT) insulation and chrome-nickel spring steel clamping springs.
- 4100% protected against mismating and designed to meet overvoltage category III and pollution degree 2 standards.
- 5Suitable for various applications including HVAC, energy storage, motor control cabinets, and robotics machinery.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 20.2?mm?/ 0.795?inches | Height | 13.4?mm?/ 0.528?inches |
Height from upper-edge of DIN-rail | 8.8?mm?/ 0.346?inches | Depth | 92.9?mm?/ 3.657?inches |
Mounting type | Panel mounting | Note (material data) | Information on material specifications can be found here |
Color | light gray | Material group | I |
Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
Fire load | 0.382MJ | Weight | 10.2g |
Limit temperature range | -60 … +120?°C | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966112429 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
