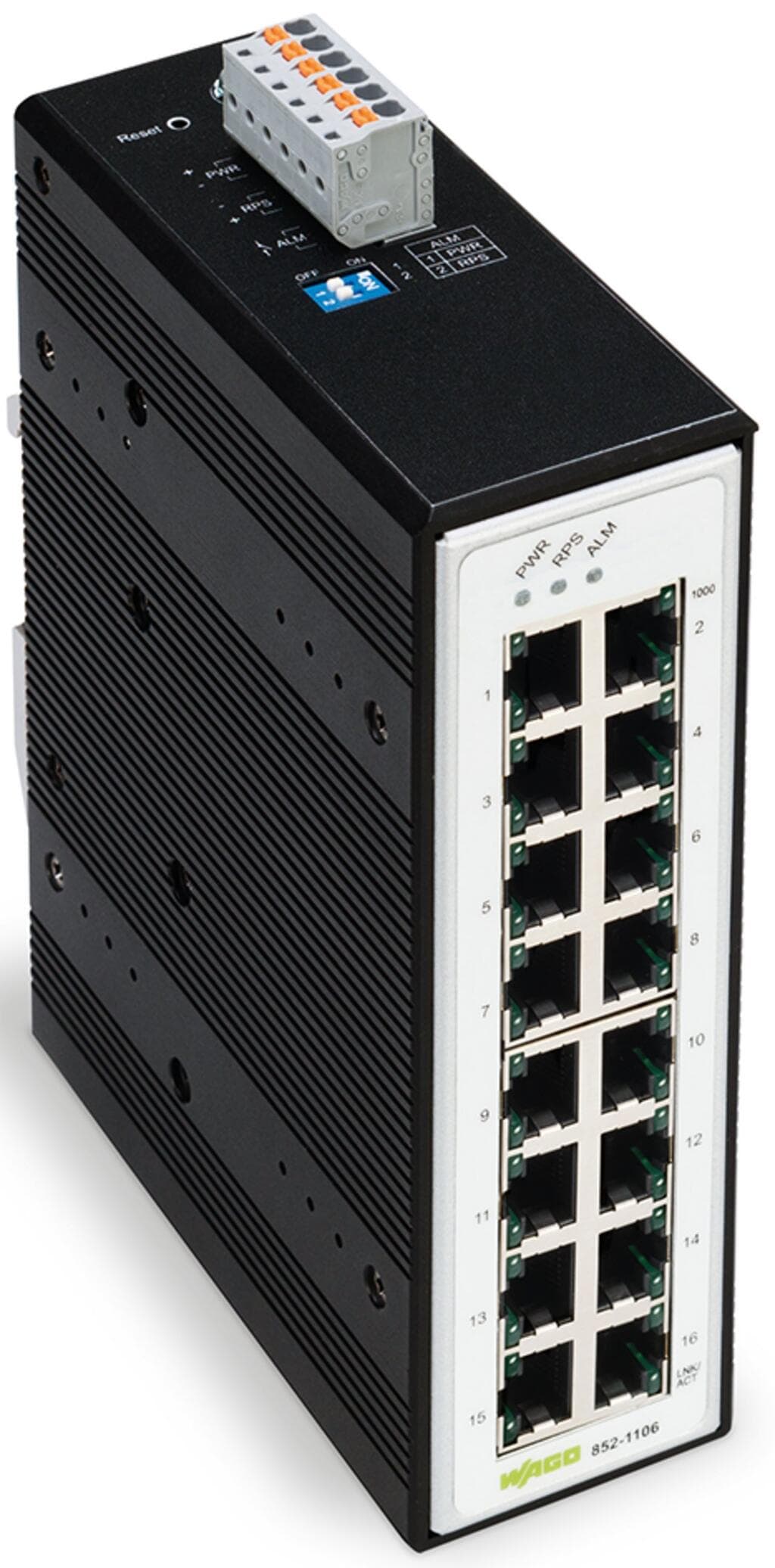

Product Model
852-1106
Selling Points
- 1High data throughput of 1 Gbit for efficient network performance.
- 216 Ethernet ports with 10/100/1000 Mbps autonegotiation for versatile connectivity.
- 3Extended temperature range of -40°C to +70°C for operation in extreme conditions.
- 4Redundant DC power supply (12-60 VDC) for uninterrupted data communication.
- 5Integrated alarm relays and DIP switches for clear malfunction indication and customizable settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Switching mode | Store-and-forward; non-blocking | Number of 1 Gb/s ports | 16 |
Communication standards | IEEE 802.3 10BASE-T | Redundancy function | Redundant DC power supply |
Configuration options | DIP switch for signal contact | Diagnostics | Signal contact |
MAC table (size) | 8000 addresses | Jumbo frame size | 10000.Byte |
Supply voltage | 12 … 60?VDC | Power consumption without PoE | 12W |
Transmission rate | Copper cable:?10/1000?Mbit/s | Transmission medium (communication/fieldbus) | Copper cable:?Cat. 5e or higher, 100 m maximum cable length |
Control Elements | 2 x DIP switch: Alarm function power supplies | Indicators | Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; per port: LED (1000, LNK/ACT) green: Status 1000 Mbps, LNK/ACT ports 1 … 16 |
Connection technology: communication/fieldbus | Copper cable:?16 x RJ-45 | Connection technology: supply | 1 x Built-in male connector: 231-436/001-000; included female connector (MCSConnectors): 2231-106/026-000 |
Width | 50?mm?/ 1.969?inches | Height | 162?mm?/ 6.378?inches |
Depth | 120?mm?/ 4.724?inches | Weight | 840g |
Color | black metallic | Housing material | Aluminum |
Conformity marking | CE | Ambient temperature (operation) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP30 |
Relative humidity (without condensation) | 95% | Mounting type | DIN-35 rail |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
Fire load | 0.302MJ | eCl@ss 10.0 | 19-17-01-30 |
eCl@ss 9.0 | 19-17-01-06 | ETIM 9.0 | EC000734 |
ETIM 8.0 | EC000734 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | TW | GTIN | 4055143604659 |
Customs tariff number | 8517620090 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
