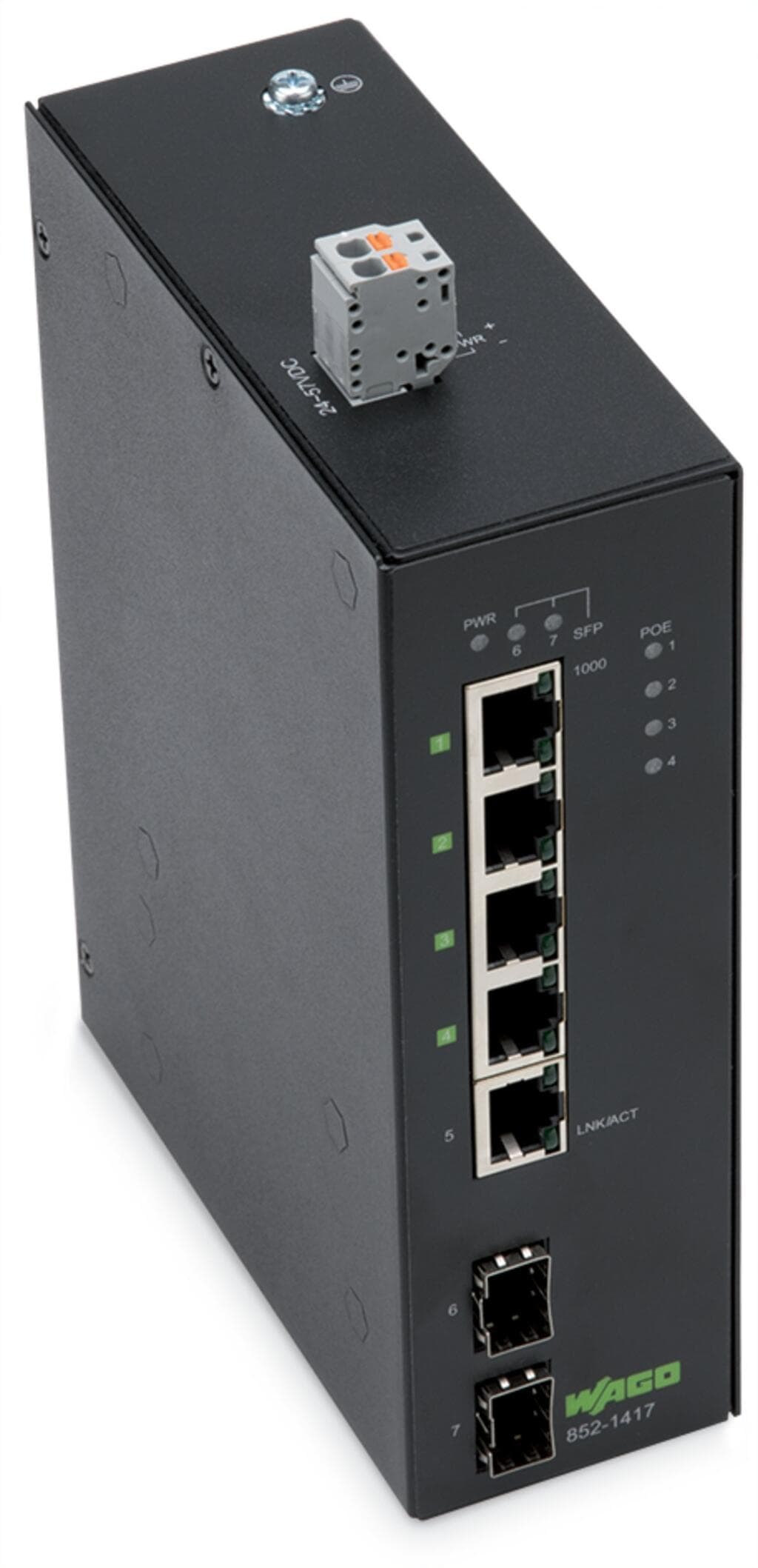

Product Model
852-1417
Selling Points
- 1Supports up to 1000 Mbit/s on copper and fiber optic cables.
- 2Four ports support up to 30 W of PoE+, ideal for powering devices.
- 3Built with sheet steel housing, IP30 protection, and vibration resistance per IEC 60068-2-6.
- 4Includes 5 x RJ-45 ports and 2 x SFP slots for versatile network configurations.
- 5Operates from -40°C to +80°C, suitable for harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of 1 Gb/s ports | 5 | Number of 1 Gb/s ports SFP | 2 |
Communication standards | IEEE 802.3 10BASE-T | MAC table (size) | 8000 addresses |
Jumbo frame size | 10000.Byte | Supply voltage | 24 … 57?VDC |
Power consumption without PoE | 14W | Full load power consumption | 134 W with 4 PoE |
Transmission rate | Copper cable:?10/1000?Mbit/s;?Fiber optic:1000?Mbit/s | Transmission medium (communication/fieldbus) | Copper cable:?Cat. 5e or higher, 100 m maximum cable length;?Fiber optic:?SX Multi-Mode, LX Single-Mode |
Optical fiber type | Single-Mode and Multi-Mode | Topology | Star |
Indicators | Device: LED (PWR) green: Power supply; LED (SFP) green: Status of fiber optic ports; LED (PoE 1 … 4) green: Power over Ethernet; per port: LED (1000, LNK/ACT) green: Status 1000 Mbit/s, LNK/ACT ports 1 … 5 | Connection technology: communication/fieldbus | Copper cable:?5 x RJ-45;?Fiber optic:?2 x SFP slots (e.g., with SFP module and LC fiber-optic connector) |
Connection technology: supply | 1 x Built-in male connector: 231-432/001-000; included female connector (MCSConnectors): 2231-102/026-000 | Width | 50?mm?/ 1.969?inches |
Height | 160?mm?/ 6.299?inches | Depth | 120?mm?/ 4.724?inches |
Weight | 780g | Color | black |
Housing material | Sheet steel | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C (per CE; ?10 … +60 °C per UL 61010) | Ambient temperature (storage) | -40 … +80 °C |
Protection type | IP30 | Relative humidity (without condensation) | 95% |
Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Fire load | 0.12MJ |
eCl@ss 10.0 | 19-17-01-30 | eCl@ss 9.0 | 19-17-01-06 |
ETIM 9.0 | EC000734 | ETIM 8.0 | EC000734 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | TW |
GTIN | 4055143727143 | Customs tariff number | 8517620090 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
