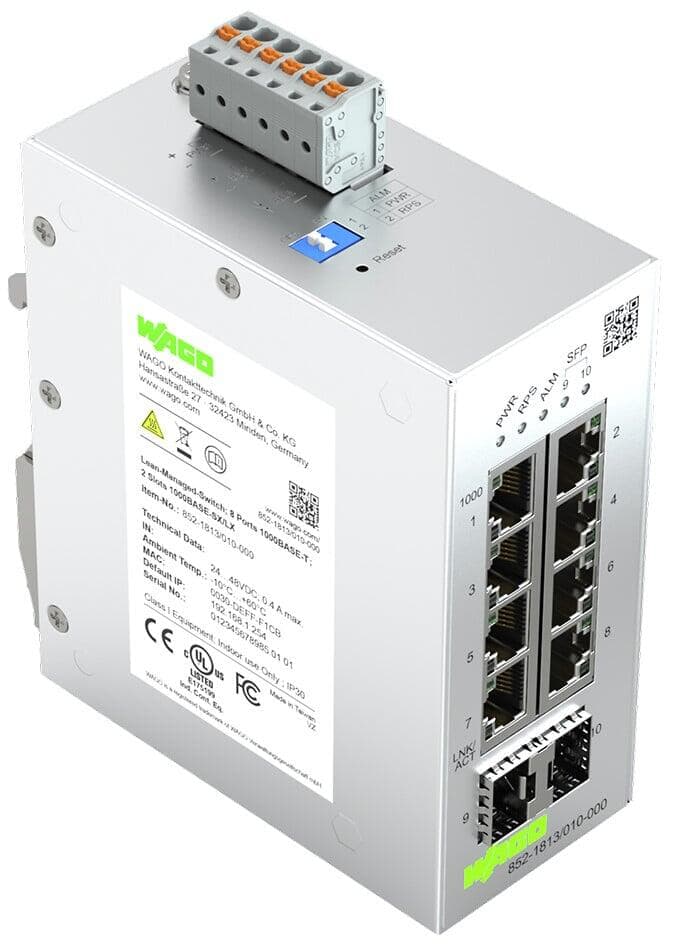

Product Model
852-1813/010-000
Selling Points
- 110 Ports for Versatile Networking: Supports up to 10 Ethernet connections for efficient network setup.
- 2DIN Rail Mounting: Easy installation on DIN rails for compact and organized industrial environments.
- 3Robust IP30 Rating: Ensures protection against dust and water, making it ideal for harsh industrial conditions.
- 424VDC Power Supply: Operates with standard 24VDC power supply, reducing complexity in industrial settings.
- 5Managed Switch with SFP Compatibility: Supports SFP modules for flexible and high-speed Ethernet connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Switching mode | Store-and-forward; non-blocking | Number of 1 Gb/s ports | 8 |
Number of 100 Mbit/s ports SFP | 2 | Communication standards | IEEE 802.3 10BASE-T |
Redundancy function | Redundant DC power supply; STP; RSTP; ERPSv1/v2 (max. 2 rings per switch, max. 16 switches per ring, switching time < 800 ms) | Configuration options | DIP switch for signal contact |
Diagnostics | Signal contact; Modbus TCP; port status; port statistics; port load; traffic monitor; syslog; SNMP traps; loop detection; diagnostics dashboard; topology map | Safety | Access-control list with max. 32 entries; port security; IEEE 802.1X authentication |
MAC table (size) | 8000 addresses | Jumbo frame size | 10000.Byte |
Supply voltage | 24 … 48?VDC;?(±15 %); 24 … 48 VDC (UL) | Power consumption without PoE | 11W |
ESD (contact/air discharge) | 8 KV / 15 KV | Transmission rate | Copper cable:?10/1000?Mbit/s;?Fiber optic:1000?Mbit/s |
Transmission medium (communication/fieldbus) | Fiber optic:?SX Multi-Mode, LX Single-Mode | Optical fiber type | Single-mode and multi-mode |
VLAN | Port-based and tag-based (max. 5 VLANs) | Connection technology: communication/fieldbus | Copper cable:?8 x RJ-45;?Fiber optic:?2 x SFP slots (e.g., with SFP module and LC fiber-optic connector) |
Width | 50?mm?/ 1.969?inches | Height | 116?mm?/ 4.567?inches |
Depth | 100?mm?/ 3.937?inches | Weight | 570g |
Conformity marking | CE | Ambient temperature (operation) | -10 … +60 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP30 |
Relative humidity (without condensation) | 95% | Mounting type | DIN-35 rail |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
ETIM 9.0 | EC000734 | ETIM 8.0 | EC000734 |
ECCN | 5A992.C | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | TW |
GTIN | 4066966163414 | Customs tariff number | 85176200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
