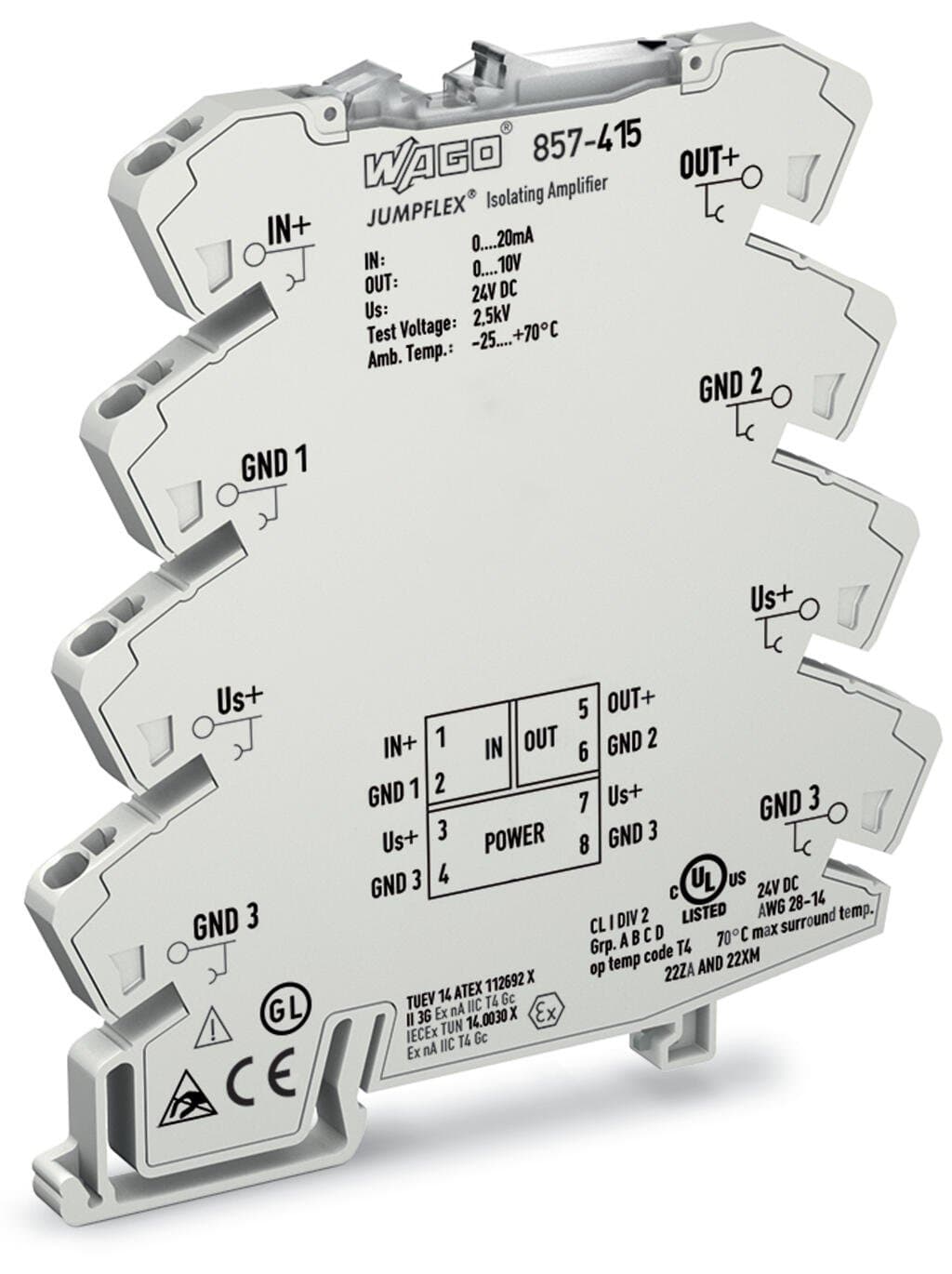

Product Model
857-415
Selling Points
- 1High Accuracy: Achieves a transmission error of ≤ 0.1% of the upper-range value.
- 2Fast Response Time: Responds in just 3.5 ms, ensuring quick signal processing.
- 3Robust Design: Operates within a temperature range of -25°C to 70°C, making it suitable for various environments.
- 4Isolation Amplifier: Provides isolation up to 2500V, ensuring safe and reliable signal transmission.
- 5Easy Installation: Features Push-in CAGE CLAMP connections and DIN rail mounting for easy integration into industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Input and output must be safely isolated from any hazardous live parts! | Note | The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.) |
Rated voltage | 300V | Protection type | IP20 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.363MJ | Weight | 35.3g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50 °C | Temperature range of connection cable | ≥ (Tambient+ 25 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
EMC emission of interference | EN 61000-6-4 | Standards/specifications | EN 61010-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-20 |
eCl@ss 9.0 | 27-21-01-20 | ETIM 9.0 | EC002653 |
ETIM 8.0 | EC002653 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454609856 |
Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 3c9cabd5-90f8-42e7-8350-1bb6848e0133 |
SCIP notification number (Belgium) | cc73672a-e836-49a2-bed0-fb6aecfffb3f | SCIP notification number (Bulgaria) | 8d89263a-7cf3-4fe9-b924-da0b3923beee |
SCIP notification number (Czech Republic) | 4c591358-863e-48fe-b914-23ee16488f15 | SCIP notification number (Denmark) | 2a9a7cb4-7cb9-4e57-8fe7-5edb8cf6250a |
SCIP notification number (Finland) | 5062a881-9842-4214-a94d-534efc5c1361 | SCIP notification number (France) | b3a28715-999a-4bc2-9483-4c8573b2c75f |
SCIP notification number (Germany) | 1de69947-98fc-4a79-b464-37ec3fc63c41 | SCIP notification number (Hungary) | 4b8fc2ed-e9cc-46d3-8413-8c2b3eda17e7 |
SCIP notification number (Italy) | 4c73d12c-1944-4e52-8cc9-6c089b0d6e82 | SCIP notification number (Netherlands) | 3da05e53-2584-4ece-84e8-ce86de123173 |
SCIP notification number (Poland) | 57a481c9-f1a1-4201-a4cd-107be2dff85b | SCIP notification number (Romania) | 5bdce2ee-0474-46bc-889a-db540b8de9ac |
SCIP notification number (Sweden) | c04444d2-395b-4026-875c-ca3b1fbbad05 | Configuration options | Pre-configured |
Input signal type | Current | Input signal (A) | 0 … 20?mA |
Input resistance (current input) | ≤?50?Ω | Input current (max.) | 50?mA |
Input voltage (max.) | 30 V | Output signal type | Voltage |
Output signal (V) | 0 … 10?V | Load impedance (voltage output) | ≥?2?kΩ |
Limit frequency | 100?Hz | Step response (typ.) | 3.5?ms |
Transmission error (typ.) | ≤ 0.1 % of upper-range value | Temperature coefficient | ≤ 0.01 %/K |
Power supply type | 24 VDC (SELV) | Nominal supply voltage U<sub>S</sub> | DC?24?V |
Supply voltage range | ±30?% | Current consumption at nominal supply voltage | ≤ 20 mA |
Current consumption | ≤ 25 mA | Test voltage (input/output/supply) | AC 3 kV; 50 Hz; 1 min |
Overvoltage category | II | Pollution degree | 2 |
Insulation type (input IN 2.1/relay output) | Functional insulation | Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
Specifications may be subject to change without notice
