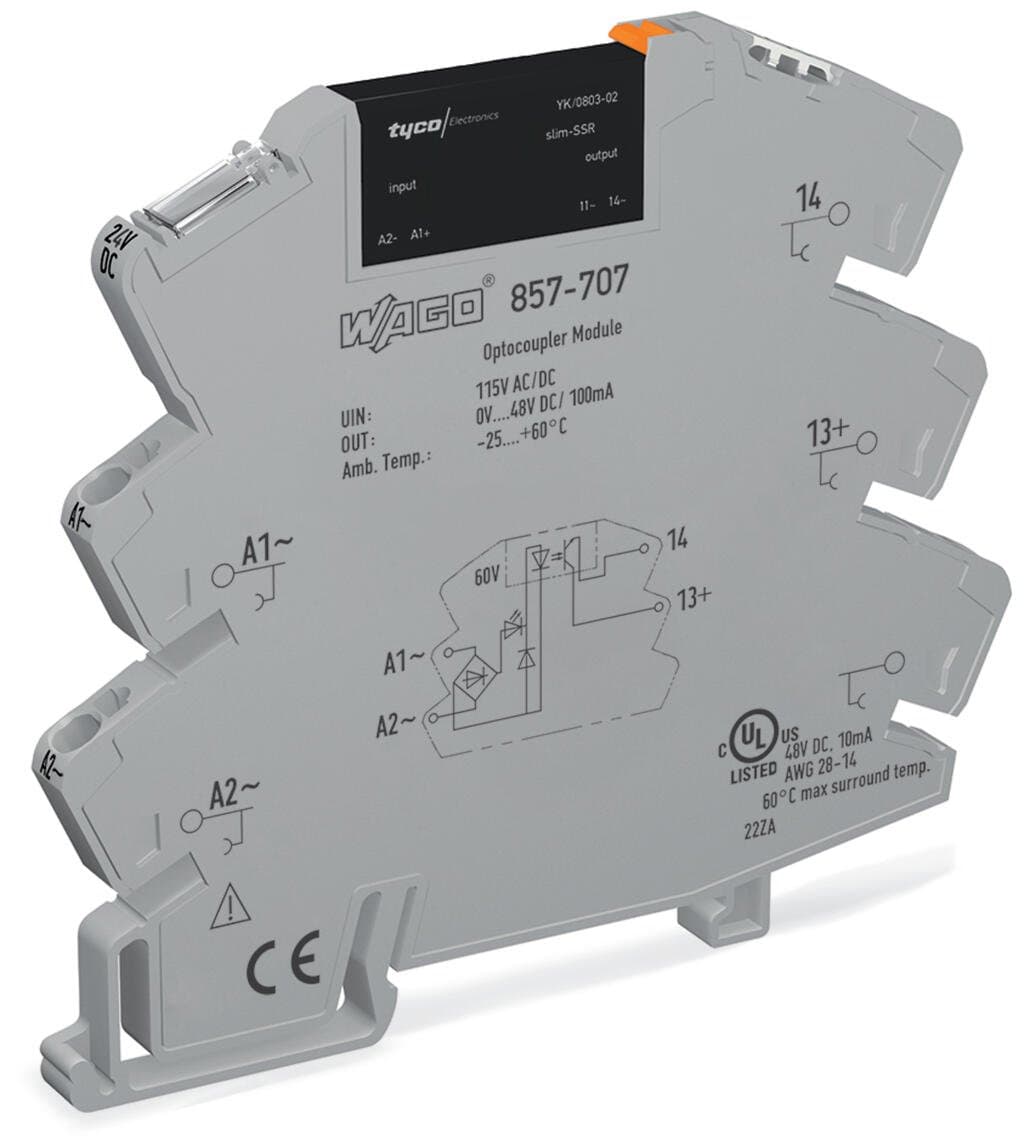

Product Model
857-707
Selling Points
- 1The WAGO 857-707 connectors offer consistent and reliable connections, ensuring smooth operation in demanding industrial environments.
- 2Designed for a wide range of applications, these connectors are suitable for use in various industries including automation, robotics, and control systems.
- 3Featuring a high-density design, the WAGO 857-707 connectors maximize space while maintaining excellent performance and durability.
- 4With its snap-action technology and push-in connection, the WAGO 857-707 connectors are easy to install and require minimal effort.
- 5Built with high-quality materials, these connectors are resistant to vibration, shock, and extreme temperatures, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Overvoltage category | III | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3.51?kVrms | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) | Insulation type (to adjacent devices of different types) | Basic insulation |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.34 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 81?mm?/ 3.189?inches | Mounting type | DIN-35 rail |
Mounting position | horizontal (standing/lying); vertical | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Material group | I | Flammability class per UL94 | V0 |
Fire load | 0.544MJ | Weight | 30g |
Ambient temperature (operation at U<sub>N</sub>) | -20 … +60 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 30 K) |
Relative humidity | 5 … 85?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61000-6-2 | WAGO Basic Relay | 857-165 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(1)?pcs | Packaging type | Box |
Country of origin | DE | GTIN | 4045454835507 |
Customs tariff number | 8536509065 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Bulgaria) | 3205be0a-c261-456b-8e3d-188bf36045fc |
SCIP notification number (Czech Republic) | 4cb2e7d3-e45d-480b-bc22-9725c4fc5f0b | Nominal input voltage U<sub>N</sub> | AC/DC?115?V |
Input voltage range (low level) | AC/DC?0 … 25?V | Input voltage range (high level) | AC/DC?100 … 138?V |
Nominal input current at U<sub>N</sub> | 5?mA | Circuit type | 2-wire connection |
Limiting continuous current | 0.1?A | Nominal output voltage | DC?24?V |
Output voltage range | DC 0 … 48?V | Voltage drop | ≤ 1?VDC |
Leakage current at rated voltage | ≤?1?μA | Switching current (min.) | 50?μA |
Turn-on time | ≤?4.5?ms | Turn-off time | ≤?10?ms |
Switching frequency | ≤?20?Hz | Status indicator | Yellow LED |
Specifications may be subject to change without notice
