Product Model

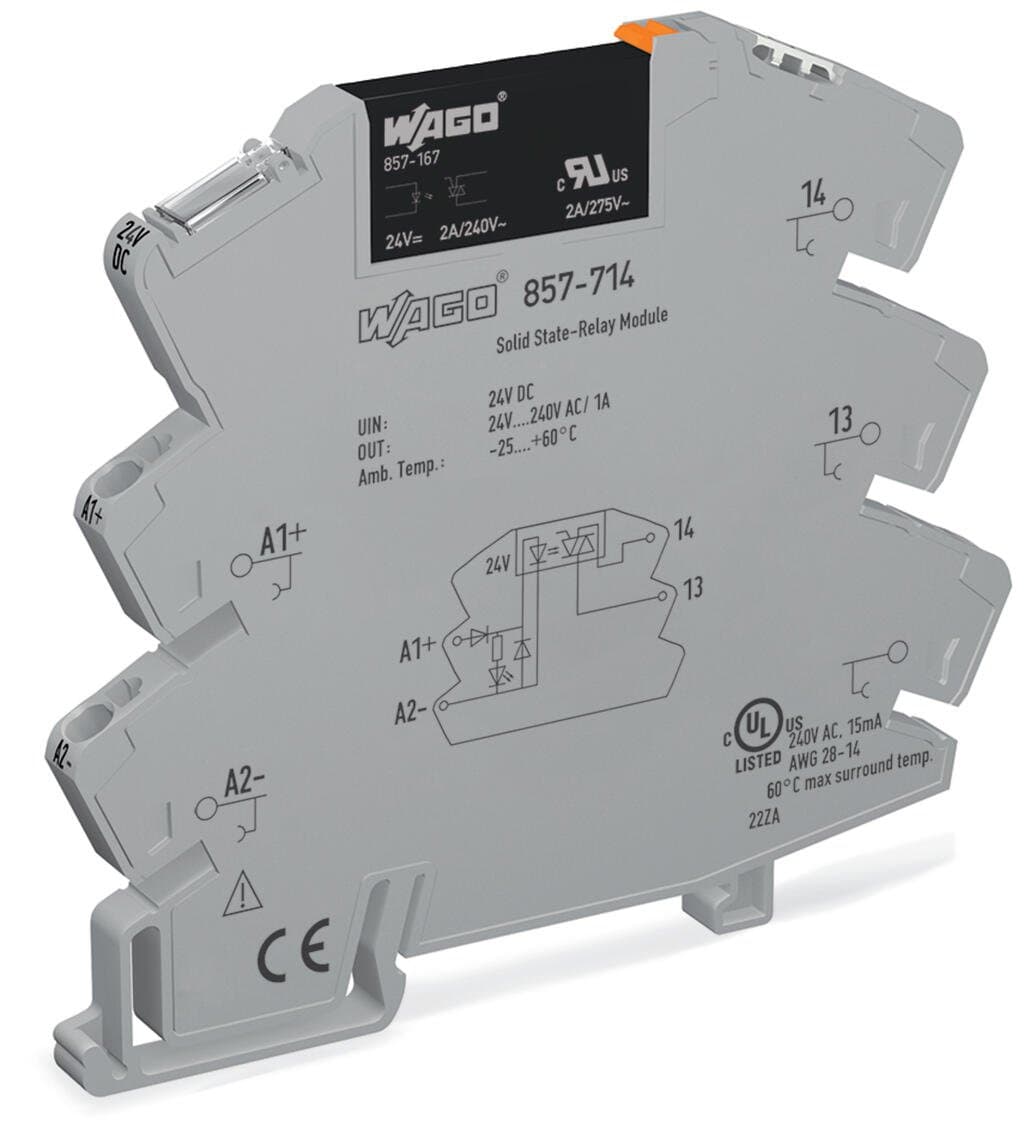

857-714
Selling Points
- 1The WAGO 857-714 solid-state relay module ensures reliable signal conditioning with a nominal input voltage of 24 VDC.
- 2Offers an output voltage range of 24 to 240 VAC, making it versatile for various applications.
- 3Housed in a 6 mm wide package, perfect for space-constrained installations.
- 4Supports a limiting continuous current of 2 A, suitable for demanding electrical needs.
- 5Features a 2-wire connection and zero-cross switching for smooth integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Overvoltage category | III | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 3.51?kVrms | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) | Insulation type (to adjacent devices of different types) | Basic insulation |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with insulated ferrule | 0.34 … 1.5?mm2?/ 22 … 16?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
Depth from upper-edge of DIN-rail | 81?mm?/ 3.189?inches | Mounting type | DIN-35 rail |
Mounting position | horizontal (standing/lying); vertical | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Material group | I | Flammability class per UL94 | V0 |
Fire load | 0.544MJ | Weight | 28.9g |
Ambient temperature (operation at U<sub>N</sub>) | -20 … +60 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 30 K) |
Relative humidity | 5 … 85?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61000-6-2 | WAGO Basic Relay | 857-167 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-26-15-03 |
eCl@ss 9.0 | 27-26-15-03 | ETIM 9.0 | EC001504 |
ETIM 8.0 | EC001504 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(1)?pcs | Packaging type | Box |
Country of origin | CN | GTIN | 4045454835545 |
Customs tariff number | 8536509065 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | e1be6fb9-4706-430c-873e-29c6c4fffbcd |
SCIP notification number (Belgium) | 35ac389a-dd2b-40ba-93f8-561e53d69fb3 | SCIP notification number (Bulgaria) | 1f4a17cb-fde4-4d5e-a76d-d1c7e74ed1d3 |
SCIP notification number (Czech Republic) | c219fe0f-72d5-48fa-9e67-3b0db3f092fd | SCIP notification number (Denmark) | 24f6c854-8bba-4fb7-a33d-6b4327984608 |
SCIP notification number (Finland) | f396a1b7-6c72-4160-af53-1e98f21bcce1 | SCIP notification number (France) | 81c10d44-5142-449a-adb7-d009ad4a6a01 |
SCIP notification number (Germany) | ab41c137-1d14-4f02-be24-87de5fc8eb2c | SCIP notification number (Hungary) | a5ed00dc-7b85-4783-94f8-1a2321300a5c |
SCIP notification number (Italy) | 5a65ea83-3a05-4bcd-9d10-3ccec1f1e375 | SCIP notification number (Netherlands) | f96a146d-a122-4b34-afab-8ce4f26cbb3a |
SCIP notification number (Poland) | 82725d69-22d1-4f83-a4bc-773cd85a6129 | SCIP notification number (Romania) | 6b965222-8af7-470f-9cf1-8ab072602be2 |
SCIP notification number (Sweden) | 9c3c9749-a281-423c-bdae-23fffb4579bf | Nominal input voltage U<sub>N</sub> | DC?24?V |
Input voltage range (low level) | DC?0 … 10?V | Input voltage range (high level) | DC?20 … 28.8?V |
Nominal input current at U<sub>N</sub> | 10?mA | Circuit type | 2-wire connection |
Limiting continuous current | 2?A | Nominal output voltage | AC?230?V |
Output voltage range | AC 24 … 240?V | Voltage drop | ≤ 1.6?VAC |
Leakage current at rated voltage | ≤?1.5?mA | Switching current (min.) | 22?mA |
Turn-on time | ≤?10?ms | Turn-off time | ≤?10?ms |
Switching frequency | 50?Hz?/ 60?Hz | Status indicator | Yellow LED |
Specifications may be subject to change without notice
