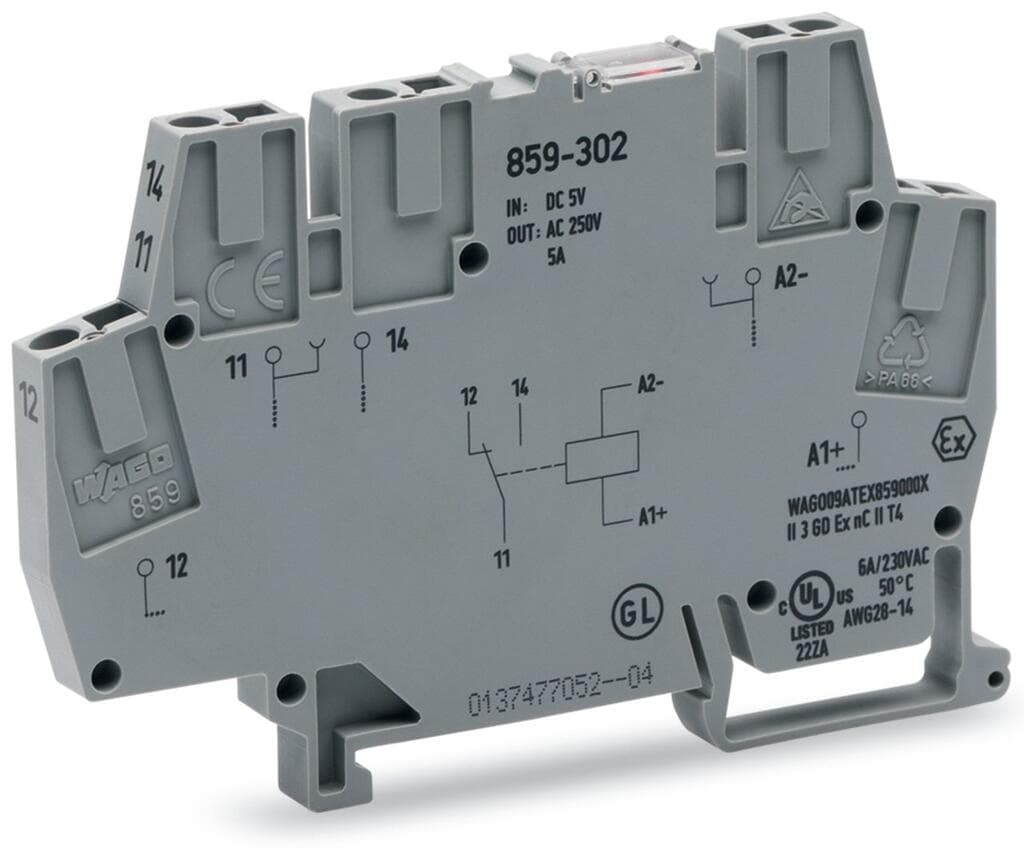

Product Model
859-302
Selling Points
- 1High amperage rating of 5A for robust applications.
- 2Compact dimensions (3.58 in H x 0.23 in W x 2.20 in D) for space-saving installations.
- 3Reliable 300V coil voltage for consistent performance.
- 4Easy mounting on 35 mm DIN rail for flexible setup options.
- 5Compliant with EN 61010-2-201, EN 61810-1, and UL 508 standards for safety assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. | Rated voltage | 300V |
Rated surge voltage | 4kV | Overvoltage category | III |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Protection type | IP20; in connected state or when using 859-525 end plate |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Mounting type | DIN-35 rail | Mounting position | Horizontal (standing/lying); vertical |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.338MJ |
Weight | 22g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +50 °C |
Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
Temperature range of connection cable | ≥ (Tambient+ 20 K) | Relative humidity | 5 … 95?% (no condensation permissible) |
Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4055143602587 |
Customs tariff number | 8536490050 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | f15d9fcf-904d-4626-a484-4e179b1fd086 |
SCIP notification number (Belgium) | 377c4c78-7560-43ba-86c8-88d5c054bab3 | SCIP notification number (Bulgaria) | a8a14eb0-0c6b-4956-bece-f10931f44371 |
SCIP notification number (Czech Republic) | 07a7819c-cc39-49d2-a548-fc2bbe42e4e8 | SCIP notification number (Denmark) | 8bc29f39-0d1e-4da5-bbc9-2aec51edac06 |
SCIP notification number (Finland) | 90489025-2017-4a1f-ade5-7a88c04953c3 | SCIP notification number (France) | 769eea16-43e0-4448-beea-9c51f941ce7f |
SCIP notification number (Germany) | 3fa2e416-c321-4095-86ae-7923d551546c | SCIP notification number (Hungary) | 1845ecb4-d135-44fe-b776-154220a20378 |
SCIP notification number (Italy) | 82109245-4da4-4710-b375-63ad6339156f | SCIP notification number (Netherlands) | a2fca02b-4159-4768-be53-6ced07aab04d |
SCIP notification number (Poland) | b3071fe3-6581-4bdb-926a-c23de52a173d | SCIP notification number (Romania) | 6b55650a-78d9-4909-a33b-4d20d7165fb6 |
SCIP notification number (Sweden) | 27a25ef8-5adc-447b-a5c3-dc1560beb6c6 | Nominal input voltage U<sub>N</sub> | DC?5?V |
Input voltage range | -15 … +20?% | Nominal input current at U<sub>N</sub> | 31?mA |
Number of changeover contacts | 1 | Contact material (relay) | AgSnO2 |
Limiting continuous current | 5?A | Inrush current (resistive) max. | (AC) 20?A?/ 0.02?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?1250?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 10?V?/ 10?mA;?24?V?/ 1?mA |
Pull-in time (typ.) | 15ms | Drop-out time (typ.) | 25ms |
Bounce time (typ.) | 3.5ms | Electrical life (NO; resistive load; 23?°C) | 50?x 103 switching operations |
Mechanical life | 5?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 180?min-1 |
Status indicator | Red LED |
