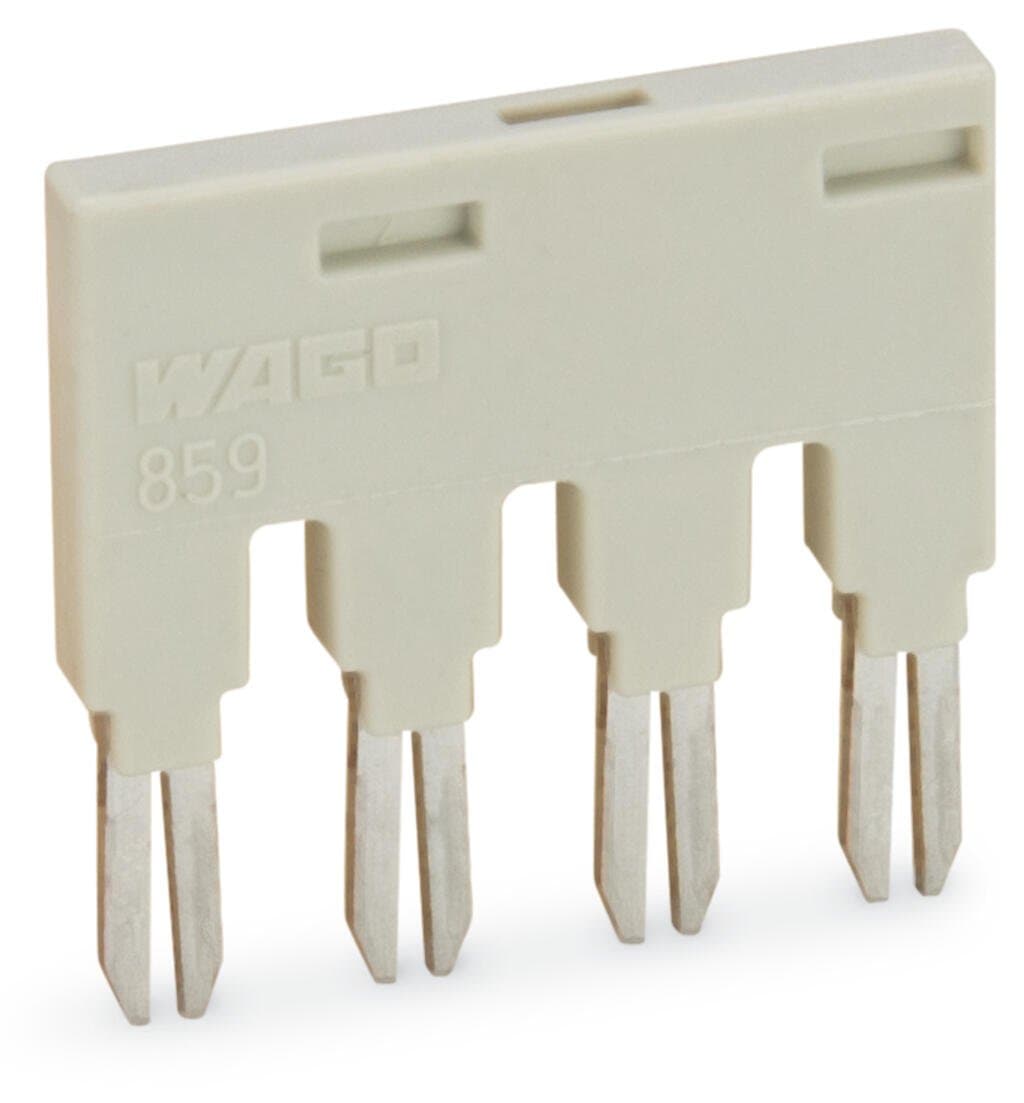

Product Model
859-404
Selling Points
- 1Insulated and Reliable: The WAGO 859-404 jumper bar is insulated for safe electrical connections.
- 24-Way Configuration: Designed as a 4-way jumper bar for versatile connection needs.
- 3DIN Rail Mounting: Compatible with DIN rail mounting systems for easy installation.
- 4Light Gray Color: Available in light gray color for easy identification in electrical setups.
- 518A Rated Current: Supports up to 18A of current, making it suitable for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Rated current | 18A | Width | 22?mm?/ 0.866?inches |
Height | 21.5?mm?/ 0.846?inches | Depth | 2.5?mm?/ 0.098?inches |
Color | light gray | Fire load | 0.021MJ |
Weight | 2.2g | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC002586 |
ETIM 8.0 | EC002586 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(25)?pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966271300 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
