Product Model

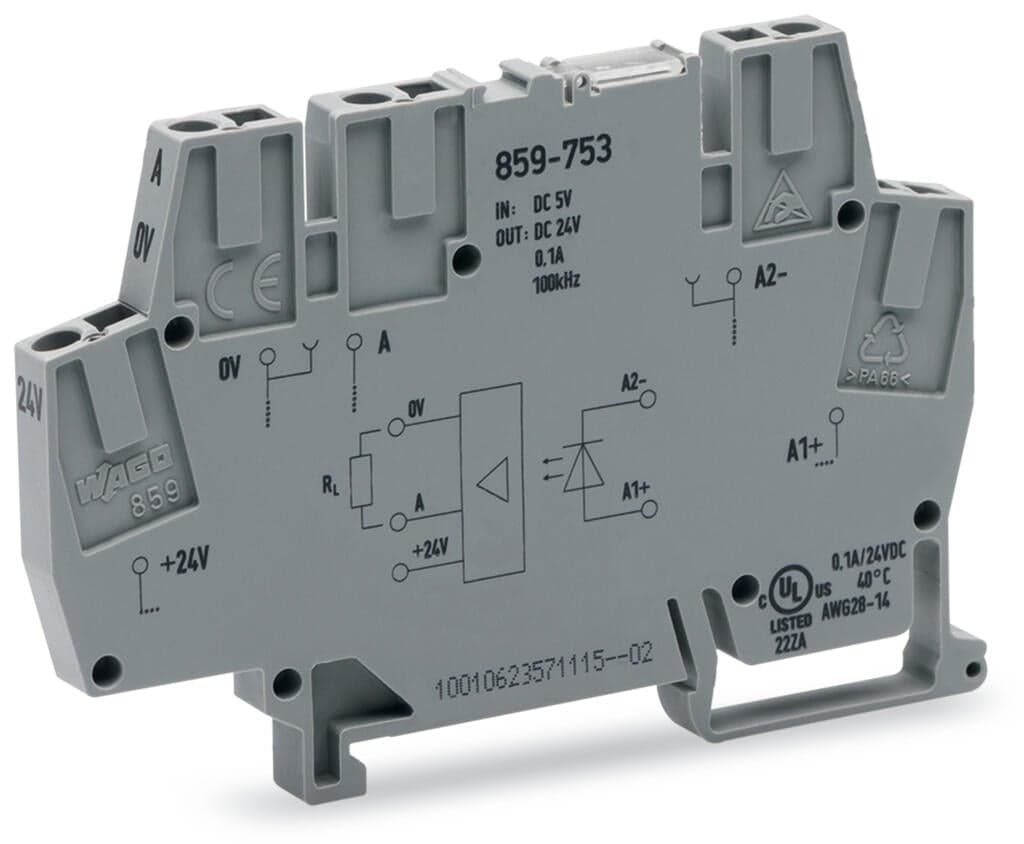

859-753
Selling Points
- 1Reliable Signal Isolation: The WAGO 859-753 optocoupler module ensures reliable signal isolation, protecting your system from electrical noise and interference.
- 2Compact Design: With a module width of just 6mm, it saves panel space and fits seamlessly into DIN rail mounting systems.
- 3Versatile Voltage Range: Supports a nominal input voltage of 5 VDC and an output voltage range of 0 to 24 VDC, making it versatile for various applications.
- 4Durable Construction: Built with high-quality components, ensuring long-lasting performance and minimal maintenance.
- 5Easy Installation: Features WAGO's CAGE CLAMP connection technology for quick and secure electrical connections, reducing wiring time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
Overvoltage category | II | Pollution degree | 2 |
Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms | Insulation type (control/load circuit) | Basic insulation |
Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
Insulation type (to adjacent devices of different types) | Basic insulation | Protection type | IP20; in connected state or when using 859-525 end plate |
Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
Mounting type | DIN-35 rail | Mounting position | horizontal (standing/lying); vertical |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Material group | I |
Flammability class per UL94 | V0 | Fire load | 0.338MJ |
Weight | 15.4g | Ambient temperature (operation at U<sub>N</sub>) | -25 … +55 °C |
Ambient temperature UL (operation at U<sub>N</sub>) | -25 … +40 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-26-15-03 | eCl@ss 9.0 | 27-26-15-03 |
ETIM 9.0 | EC001504 | ETIM 8.0 | EC001504 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143605472 | Customs tariff number | 8541500080 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 18df1e9a-c697-4ce9-b07c-fbf2ce917e0b | SCIP notification number (Belgium) | 401ba1b7-4e7a-420b-b550-c9cac64db2b0 |
SCIP notification number (Bulgaria) | 0c2d8a6c-8f6a-46bc-a964-1cb116893f06 | SCIP notification number (Czech Republic) | 9241c05e-b8f7-4c26-b91a-7ec9e6bda90f |
SCIP notification number (Denmark) | a97c8669-debc-4c08-b28d-7cc466f2e902 | SCIP notification number (Finland) | f1847cbf-b1a2-475c-b66e-c06ac9d3815c |
SCIP notification number (France) | eaf07eef-6232-47cf-814a-7297e9538876 | SCIP notification number (Germany) | 5bf469c3-3a40-4579-8985-c8d4054b59f7 |
SCIP notification number (Hungary) | a4a1a3cf-9565-451b-9320-f6be12719f7f | SCIP notification number (Italy) | bda63a43-a067-4f7d-a32e-b66dec9ef87f |
SCIP notification number (Netherlands) | 06ed8cce-30a9-44e2-8cc0-1d87f81da38b | SCIP notification number (Poland) | b5808be2-ab2b-400f-9de8-cdaef1735b14 |
SCIP notification number (Romania) | b2ce610b-ccd9-47b6-8ce9-a9d6b1906ec7 | SCIP notification number (Sweden) | a63143af-d331-4fe9-9dd2-ebe0d64a27d8 |
Nominal input voltage U<sub>N</sub> | DC?5?V | Input voltage range (low level) | DC?0 … 1?V |
Input voltage range (high level) | DC?4 … 6.25?V | Nominal input current at U<sub>N</sub> | 17?mA |
Circuit type | 3-wire connection | Limiting continuous current | 0.1?A |
Peak output current | 0.8A | Nominal output voltage | DC?24?V |
Output voltage range | DC 20 … 28.8?V | Voltage drop | ≤ 1.2?VDC |
Leakage current at rated voltage | ≤?10?μA | Output closed-circuit current (without load) max. | 7mA |
Turn-on time | ≤?0.5?μs | Turn-off time | ≤?5?μs |
Switching frequency | ≤?100?kHz | Status indicator | Red LED |
