Product Model

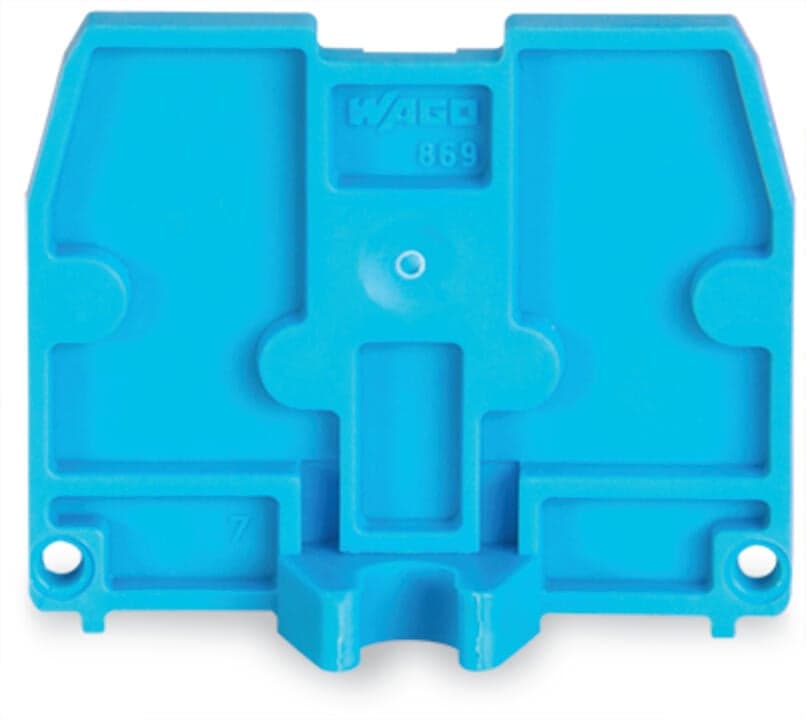

869-398
Selling Points
- 1Durable Construction: Made with 2.5 mm thick polyamide (PA66) for enhanced durability.
- 2Easy Installation: Features a fixing flange M4 for secure mounting on DIN rail terminal blocks.
- 3Fire-Resistant: Meets UL94 V0 flammability class, ensuring safety in high-temperature environments.
- 4Compact Design: Blue color for easy identification and space-efficient design.
- 5Reliable Connectivity: Ideal for use in industrial applications requiring reliable electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 27.6?mm?/ 1.087?inches |
Depth | 33.4?mm?/ 1.315?inches | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.047MJ | Weight | 1.6g |
Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332573566 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
