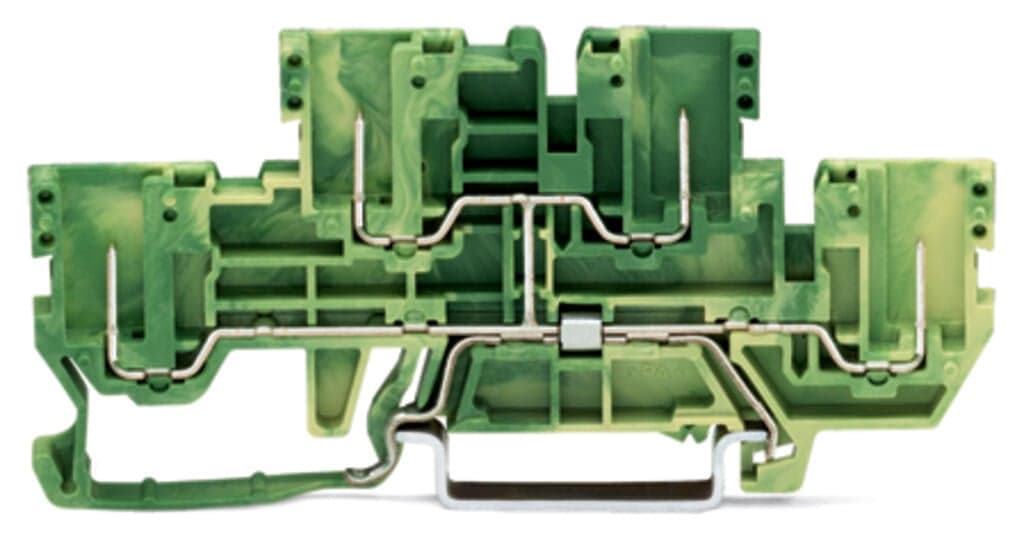

Product Model
870-157
Selling Points
- 1High-reliability connectivity for critical industrial applications.
- 2Easy installation with snap-in connectors for quick setup.
- 3Durable performance in harsh environments with IP67 rating.
- 4Versatile use in various industries including automation and robotics.
- 5Compact design for space-saving installations in control cabinets.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | 2-conductor female plugs cannot be used. | Total number of potentials | 1 |
Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
Height | 88.6?mm?/ 3.488?inches | Depth from upper-edge of DIN-rail | 37.1?mm?/ 1.461?inches |
Potential Marking | PE | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.185MJ |
Weight | 11.8g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
eCl@ss 10.0 | 27-14-11-41 | eCl@ss 9.0 | 27-14-11-41 |
ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454397296 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated surge voltage (III/2) | 6kV |
Rated current | 16A | Actuation type | Operating tool |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
