Product Model
870-410
Selling Points
- 1Ideal for industrial electrical applications with a nominal current of 18 A.

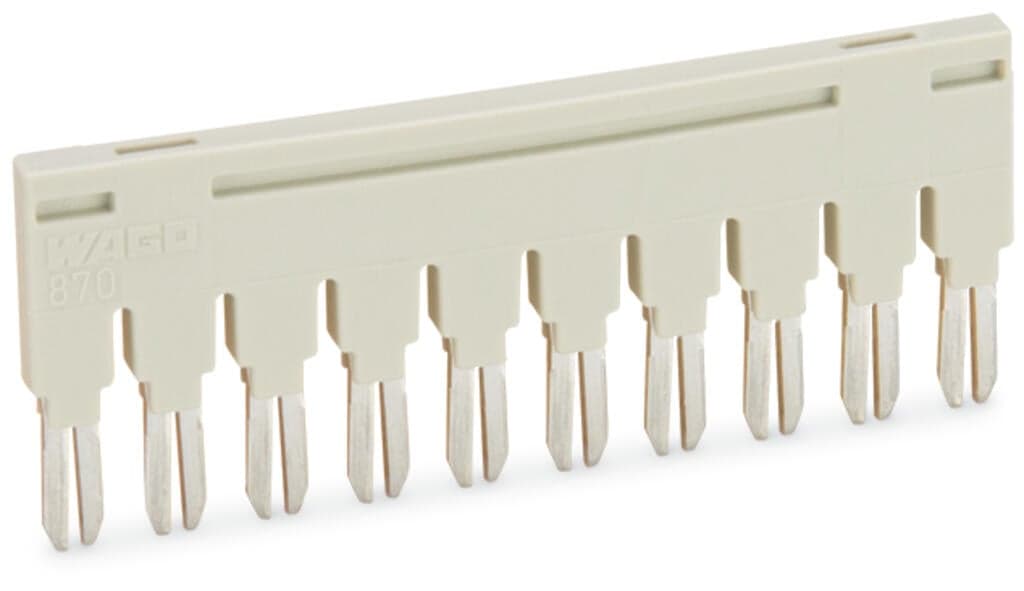

- 210-way insulated push-in jumper bar for secure connections.
- 3Light gray finish for easy identification in complex systems.
- 4Compatible with through/ground (Earth) conductor and double potential terminal blocks.
- 5RoHS compliant and no SVHC, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 49?mm?/ 1.929?inches | Height | 2.5?mm?/ 0.098?inches |
Jumper assignment | 1-2-3-4-5-6-7-8-9-10 | Note (material data) | Information on material specifications can be found here |
Color | light gray | Fire load | 0.056MJ |
Weight | 4.4g | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?(25)?pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4066966274837 |
Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 18A | Rated current (Ex e II) | 13.5A |
Specifications may be subject to change without notice
