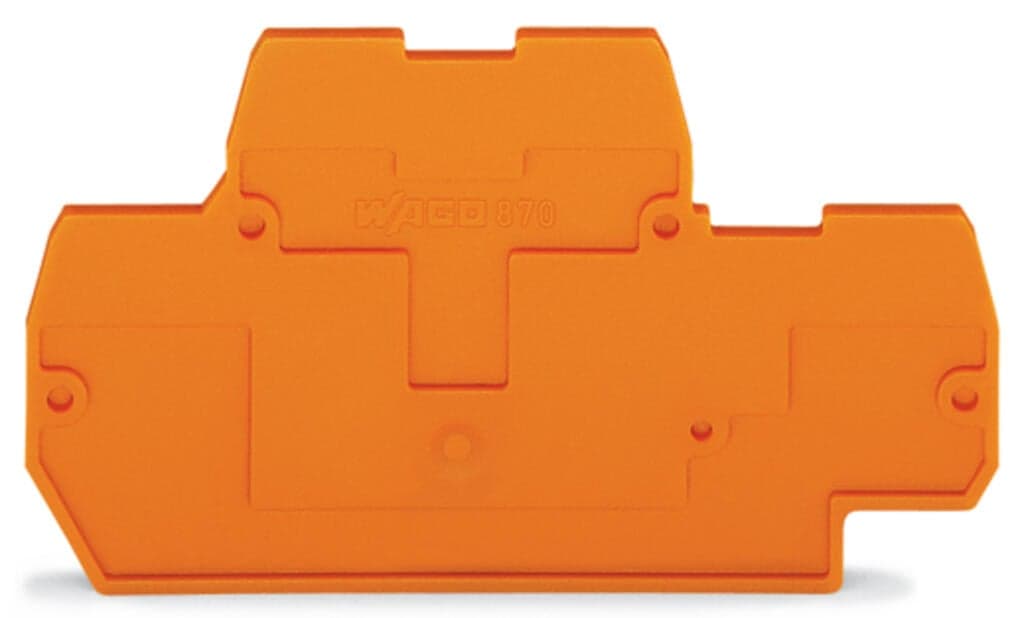

Product Model
870-519
Selling Points
- 1Ensures environmental safety with no hazardous materials.
- 2Easily identifiable in your terminal block setup.
- 30.079 IN Width X 2.742 IN Depth X 1.57 IN Height for efficient use.
- 4Suitable for feed-through and grounding applications.
- 5Made from durable materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 69.6?mm?/ 2.74?inches |
Depth | 40?mm?/ 1.575?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.087MJ | Weight | 2.9g |
Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4017332529518 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
