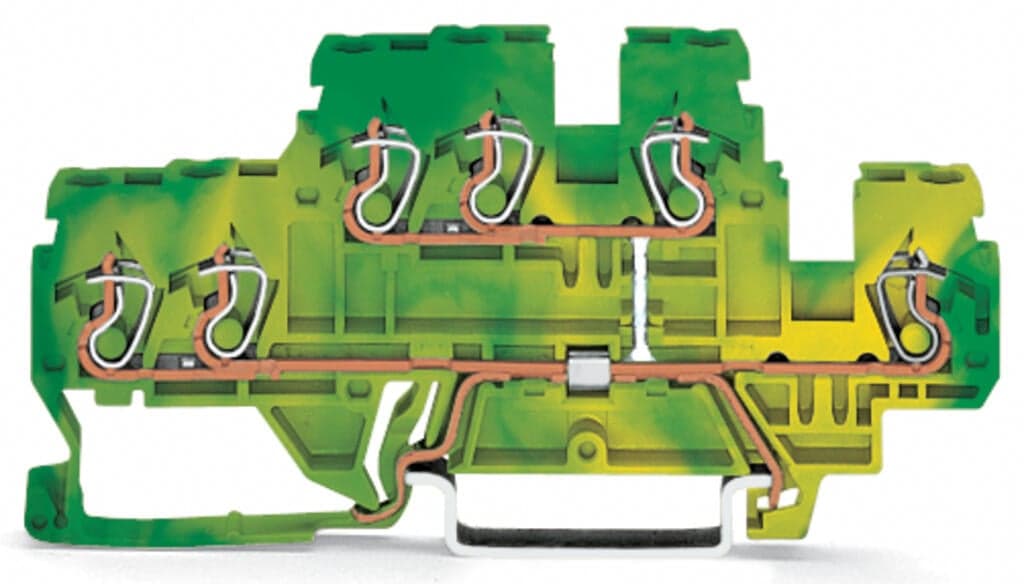

wago 870-537

Selling Points

  • 1CAGE CLAMP connections ensure secure and reliable connections.
  • 2Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting options.
  • 3Simplifies wiring with internal commoning for easier setup.
  • 4Supports a rated current of 24A, suitable for various applications.
  • 5Made from polyamide (PA66) insulation material for long-lasting performance.
Product Details
870-537
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Safety information
Max. insulation diameter: 4.4 mm
Clamping units
6
Total number of potentials
1
Number of levels
2
Width
5?mm?/ 0.197?inches
Height
91?mm?/ 3.583?inches
Depth from upper-edge of DIN-rail
40?mm?/ 1.575?inches
Potential Marking
PE
Design
horizontal type
Mounting type
DIN-35 rail
Marking level
Side marking
Note (material data)
Information on material specifications can be found here
Color
green-yellow
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.201MJ
Weight
15.5g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
eCl@ss 10.0
27-14-11-41
eCl@ss 9.0
27-14-11-41
ETIM 9.0
EC000901
ETIM 8.0
EC000901
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
DE
GTIN
4045454094522
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60947-7-2
Resistance value for specified, current-dependent power loss
0.001Ω
Connection technology
CAGE CLAMP?
Actuation type
Operating tool
Connectable conductor materials
Copper
Solid conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor
0.08 … 4?mm2?/ 28 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.08 … 1.5?mm2?/ 28 … 14?AWG
Strip length
6 … 7?mm?/ 0.24 … 0.28?inches
Wiring direction
Front-entry wiring

Specifications may be subject to change without notice
