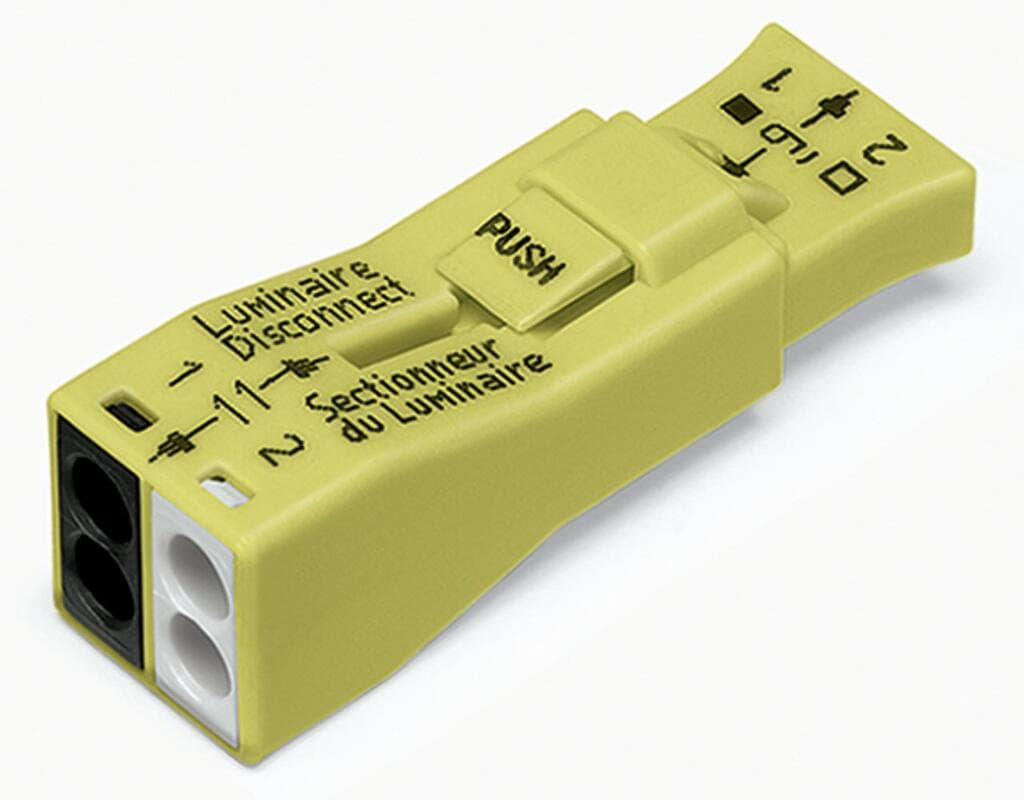

Product Model
873-902
Selling Points
- 1Molded in color coding for circuit wiring, including black for L, white for N, red for dimming and switching, and green for ground.
- 2Automatic locking with mating connectors and simple push-down disengagement for secure connections.
- 3Meets NEC 410.73 (G), CEC30-308 (4), CSA/UL standard 2459, ensuring compliance and safety in non-residential wiring.
- 4Accepts both solid (AWG#18-12) and stranded wire (AWG#16-12), providing flexibility in conductor materials.
- 5Completely touch-proof in the un-mated position, ensuring safety during handling and installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 6 | Total number of potentials | 2 |
Width | 13?mm?/ 0.512?inches | Height | 13.2?mm?/ 0.52?inches |
Depth | 42?mm?/ 1.654?inches | Note (material data) | Information on material specifications can be found here |
Color | yellow | Fire load | 0.103MJ |
Weight | 4.8g | Product Group | 8 (Misc. Chassis Mount Blocks) |
eCl@ss 10.0 | 27-44-03-14 | eCl@ss 9.0 | 27-44-03-14 |
ETIM 9.0 | EC002560 | ETIM 8.0 | EC000458 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 400?(40)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4045454548421 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | EN 60998 |
Nominal voltage (II/2) | 400V | Rated surge voltage (II/2) | 4kV |
Rated current | 6A | Ratings per 2 | EN 61984 |
Rated voltage (UL) | 600V | Rated current UL | 20A |
Connection type 1 | Plug | Connection technology | PUSH WIRE? |
Actuation type | Push-in | Connectable conductor materials | Copper |
Solid conductor | 18 … 12?AWG | Stranded conductor | 16 … 12?AWG |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Number of poles | 2 |
Connection type 2 | Socket | Solid conductor 2 | 18?AWG |
Strip length 2 | 9 … 11?mm?/ 0.35 … 0.43?inches |
Specifications may be subject to change without notice
