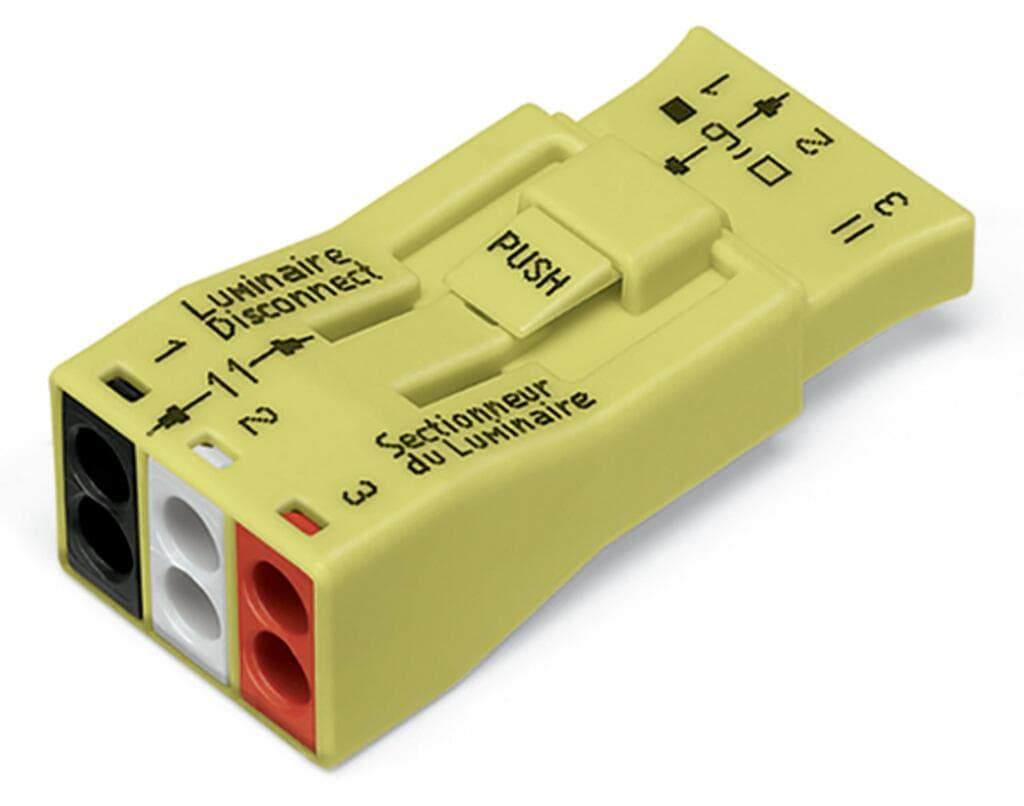

Product Model
873-903
Selling Points
- 1Fully Insulated Design: Ensures safe and reliable connections in electrical systems.
- 2Push-In Connection: Easy to use, eliminating the need for additional tools.
- 33-Pole Configuration: Suitable for various switching and dimming applications.
- 4500-Piece Box: Convenient packaging for bulk use in projects.
- 5Wire Mount Installation: Simple and secure mounting method for wires.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 9 | Total number of potentials | 3 |
Width | 19?mm?/ 0.748?inches | Height | 13.2?mm?/ 0.52?inches |
Depth | 42?mm?/ 1.654?inches | Note (material data) | Information on material specifications can be found here |
Color | yellow | Fire load | 0.144MJ |
Weight | 6.9g | Product Group | 8 (Misc. Chassis Mount Blocks) |
eCl@ss 10.0 | 27-44-03-14 | eCl@ss 9.0 | 27-44-03-14 |
ETIM 9.0 | EC002560 | ETIM 8.0 | EC000458 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(20)?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4045454671815 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | EN 60998 |
Nominal voltage (II/2) | 400V | Rated surge voltage (II/2) | 4kV |
Rated current | 6A | Ratings per 2 | EN 61984 |
Rated voltage (UL) | 600V | Rated current UL | 20A |
Connection type 1 | Plug | Connection technology | PUSH WIRE? |
Actuation type | Push-in | Connectable conductor materials | Copper |
Solid conductor | 16 … 12?AWG | Stranded conductor | 16 … 12?AWG |
Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Number of poles | 3 |
Connection type 2 | Socket | Solid conductor 2 | 18?AWG |
Strip length 2 | 9 … 11?mm?/ 0.35 … 0.43?inches |
Specifications may be subject to change without notice
