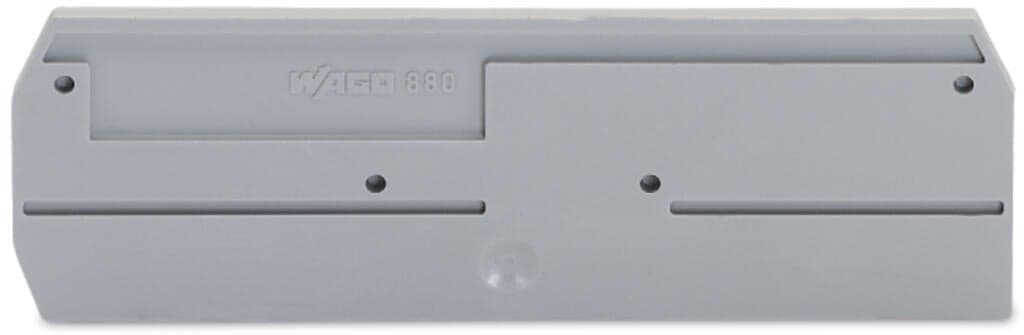

Product Model
880-344
Selling Points
- 1High-Quality Material: Made from durable, 2.5mm thick gray material.
- 2Fire Load Compliance: Meets fire load requirements of 0.120 MJ.
- 3Flammability Class V0: Compliant with UL94 V0 flammability class.
- 4Compact Design: Dimensions: 28.6mm depth, 86.7mm height, and 2.5mm width.
- 5RoHS Compliant: Suitable for RoHS compliant applications (to be advised).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2.5?mm?/ 0.098?inches | Height | 86.7?mm?/ 3.413?inches |
Depth | 28.6?mm?/ 1.126?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.12MJ | Weight | 4.4g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332650915 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
