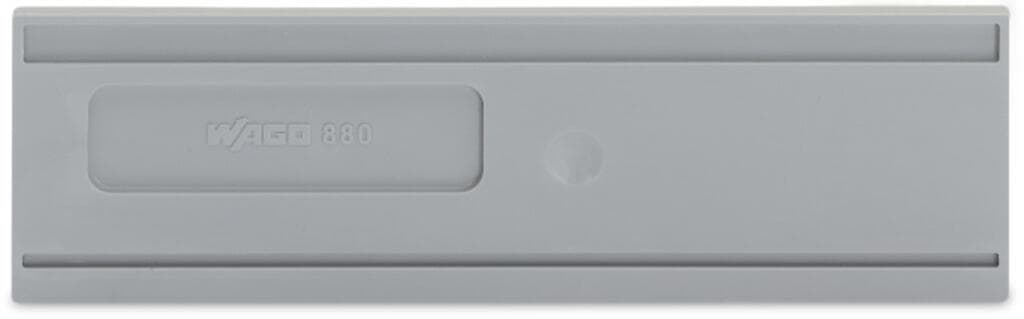

Product Model
880-345
Selling Points
- 12 mm thick, oversized design for precise separation.
- 2Made from high-quality polyamide (PA66) for durability.
- 3Gray color with a fire load of 0.09 MJ and V0 flammability class.
- 4Compliant with RoHS regulations, ensuring environmental safety.
- 5Available in packs of 25 pieces for convenient packaging.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 2?mm?/ 0.079?inches | Height | 86.9?mm?/ 3.421?inches |
Depth | 27.1?mm?/ 1.067?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.09MJ | Weight | 3g |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332650922 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
