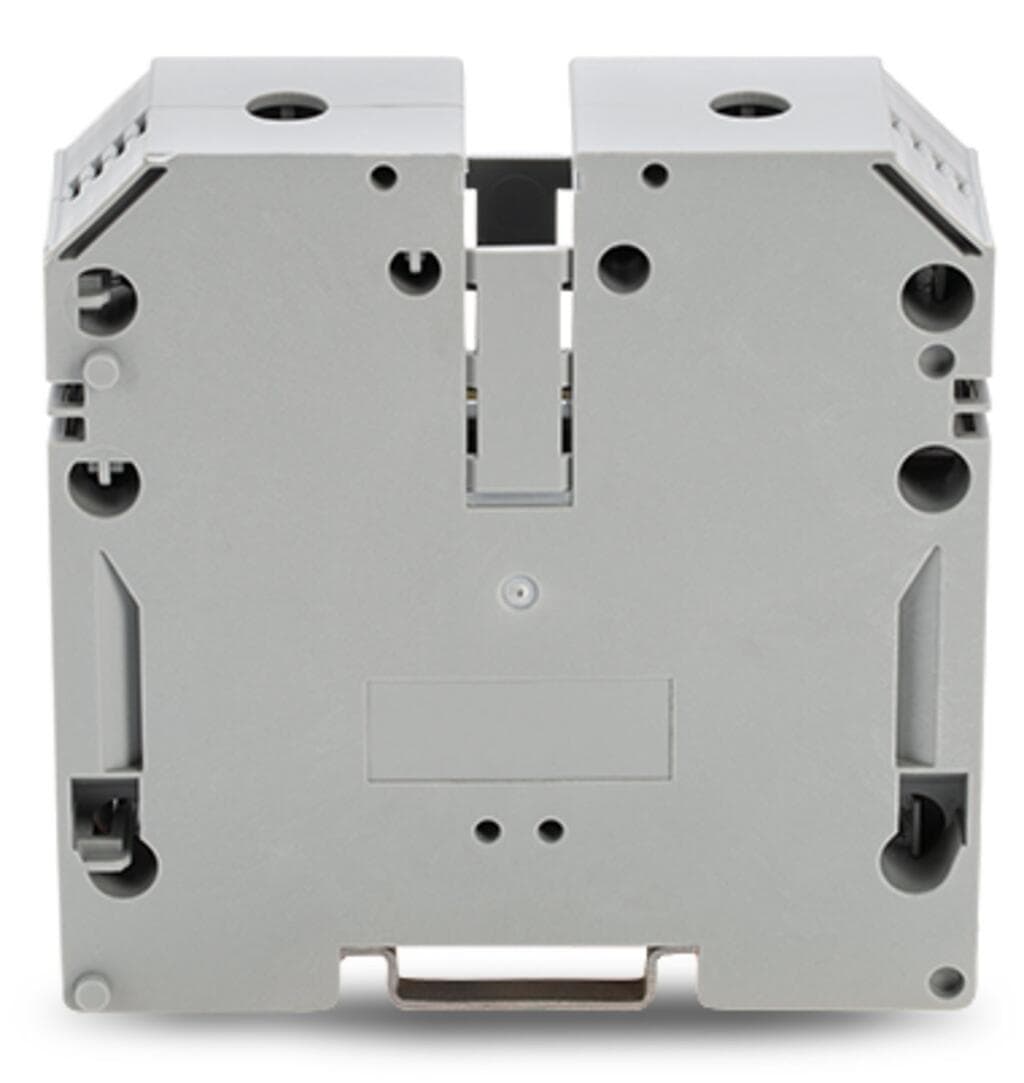

Product Model
883-1201
Selling Points
- 1Built with high-quality materials and designed for continuous operating temperatures from -35°C to +105°C.
- 2Supports fine-stranded conductors ranging from 16mm² to 120mm², including #6AWG to #300kcmil.
- 3Features a screw-type connection and side-entry wiring for straightforward setup.
- 4Meets UL and CSA standards, ensuring safe and reliable operation in various environments.
- 5Mounts on DIN-rail with dimensions of 35 x 7.5mm, making it perfect for space-efficient applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 1 |
Width | 27?mm?/ 1.063?inches | Height | 91?mm?/ 3.583?inches |
Depth from upper-edge of DIN-rail | 90?mm?/ 3.543?inches | Tightening torque | 12 … 20?Nm |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 280.7g | Continuous operating temperature | -35 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143940276 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 269A | Current at conductor cross-section (max.) mm2 | 290A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 228A |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 228A |
Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 228A |
Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 228A |
Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 228A |
Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 228A |
Power loss, per pole (potential) | 8.683W | Rated current I<sub>N</sub> for specified power loss | 269A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | Screw connection |
Actuation type | T-wrench; 6 mm | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors. These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors.” | Nominal cross-section | 120 mm2 |
Solid conductor | 16 … 150?mm2?/ 6?AWG … 300?kcmil | Stranded conductor | 16 … 150?mm2?/ 6?AWG … 300?kcmil |
Fine-stranded conductor | 16 … 120?mm2?/ 6?AWG … 250?kcmil | Fine-stranded conductor; with insulated ferrule | 16 … 95?mm2?/ 6 … 3/0?AWG |
Strip length | 27?mm?/ 1.06?inches | Wiring direction | Side-entry wiring |
Screw thread | M10 |
Specifications may be subject to change without notice
