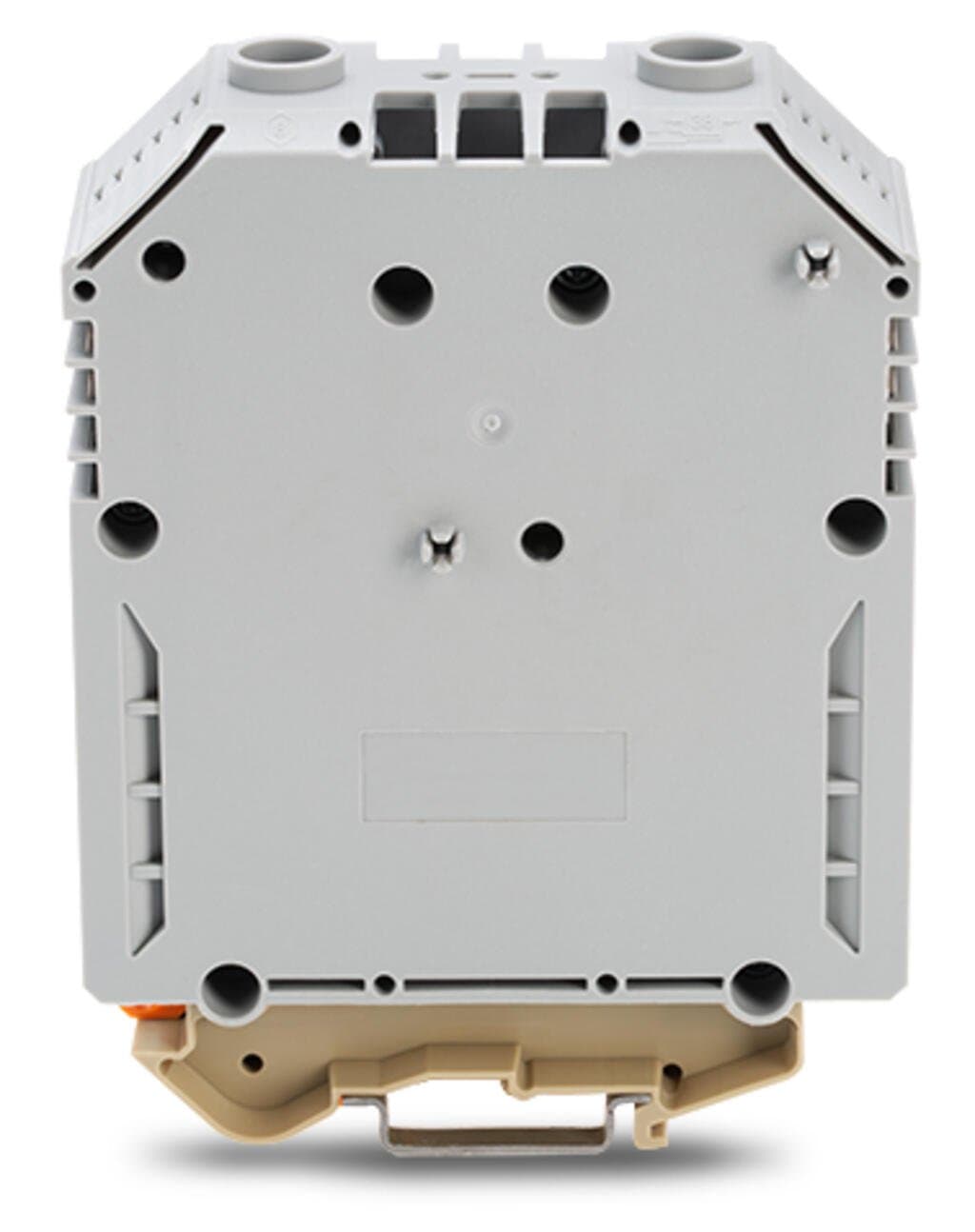

Product Model
883-2401
Selling Points
- 1Supports up to 380A, ensuring reliable performance in demanding electrical systems.
- 2Constructed with polyamide (PA66) insulation and a screw-type connection for long-lasting reliability.
- 3Mounts on 36mm wide DIN-35 rail, offering flexibility in installation options.
- 4Accommodates fine-stranded or solid conductors from 70mm² to 240mm² (2/0 AWG to #500kcmil).
- 5Meets UL and IEC/EN 60947-7-1 standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 36?mm?/ 1.417?inches | Height | 93?mm?/ 3.661?inches |
Depth from upper-edge of DIN-rail | 126.3?mm?/ 4.972?inches | Tightening torque | 10 … 20?Nm |
Mounting type | DIN-35 rail | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V2 |
Weight | 352.4g | Continuous operating temperature | -35 … +105?°C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143940641 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 380A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
Rated current UL (Use Group B) | 370A | Rated voltage UL (Use Group C) | 600V |
Rated current UL (Use Group C) | 370A | Rated voltage CSA (Use Group C) | 600V |
Rated current CSA (Use Group C) | 370A | Power loss, per pole (potential) | 11.552W |
Rated current I<sub>N</sub> for specified power loss | 380A | Resistance value for specified, current-dependent power loss | 8Ω |
Connection technology | Screw connection | Actuation type | T-wrench; 8 mm |
Connectable conductor materials | Copper | Connectable conductor materials (note) | Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors. These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors.” |
Nominal cross-section | 240 mm2 | Solid conductor | 70 … 240?mm2?/ 2/0?AWG … 500?kcmil |
Stranded conductor | 70 … 240?mm2?/ 2/0?AWG … 500?kcmil | Fine-stranded conductor | 70 … 240?mm2?/ 2/0?AWG … 500?kcmil |
Fine-stranded conductor; with insulated ferrule | 70 … 185?mm2?/ 2/0?AWG … 350?kcmil | Strip length | 38?mm?/ 1.5?inches |
Wiring direction | Side-entry wiring | Screw thread | M10 |
Specifications may be subject to change without notice
