Product Model

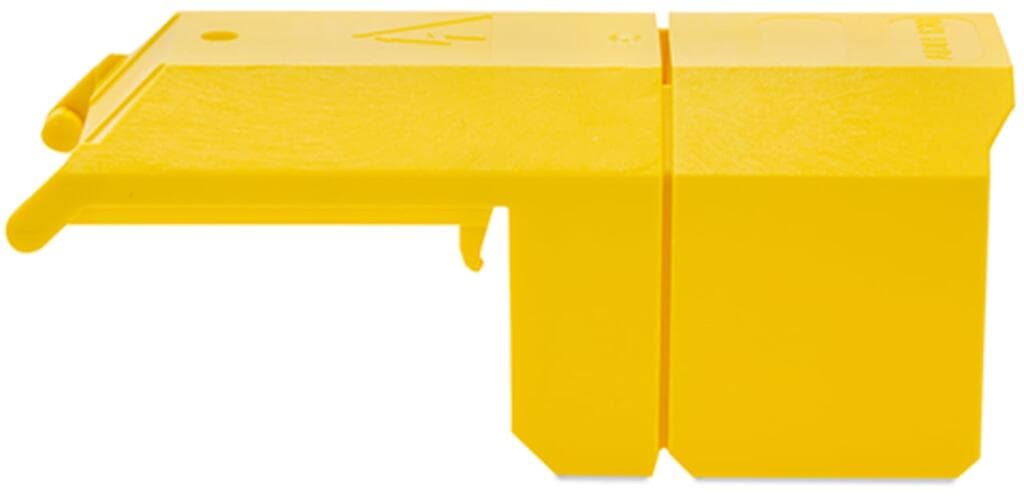

884-1286
Selling Points
- 1Constructed from durable Polyamide (PA66) for excellent thermal and electrical insulation.
- 2Meets UL94 V0 flammability class for enhanced safety in industrial environments.
- 3Suitable for stud terminal blocks with a capacity of 120 mm², ensuring efficient use of space.
- 4Simple to install, ensuring quick setup in various automation systems.
- 5Environmentally friendly, compliant with RoHS regulations without any exemptions noted in its manufacturing specifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 16.3g |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143941921 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
