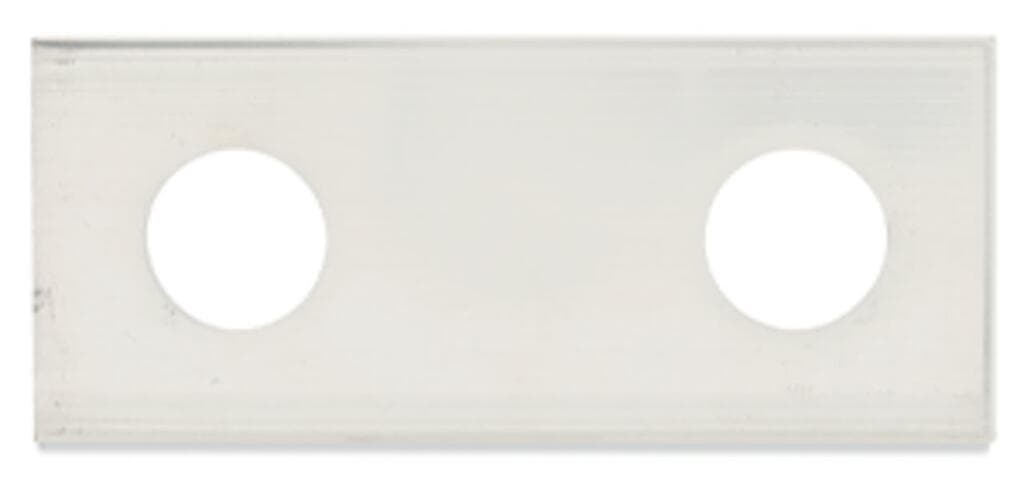

Product Model
884-3042
Selling Points
- 1High voltage rating up to 1000V.
- 2High current rating up to 510A.
- 3Compatible with M16 stud bolts.
- 42-way jumper for versatile connections.
- 5White, unplated design for easy identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | white |
Weight | 149g | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055143941884 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated current | 520A |
Rated voltage UL (Use Group B) | 1000V | Rated current UL (Use Group B) | 510A |
Rated voltage UL (Use Group C) | 1000V | Rated current UL (Use Group C) | 510A |
Rated voltage UL (Use Group D) | 1000V | Rated current UL (Use Group D) | 510A |
Rated voltage CSA (Use Group B) | 1000V | Rated current CSA (Use Group B) | 510A |
Rated voltage CSA (Use Group C) | 1000V | Rated current CSA (Use Group C) | 510A |
Rated voltage CSA (Use Group D) | 1000V | Rated current CSA (Use Group D) | 510A |
Specifications may be subject to change without notice
