Product Model
884-3543
Selling Points
- 1High-Voltage Capability: Rated voltage up to 1000V.
- 2Reliable Current Handling: Supports up to 130A current.

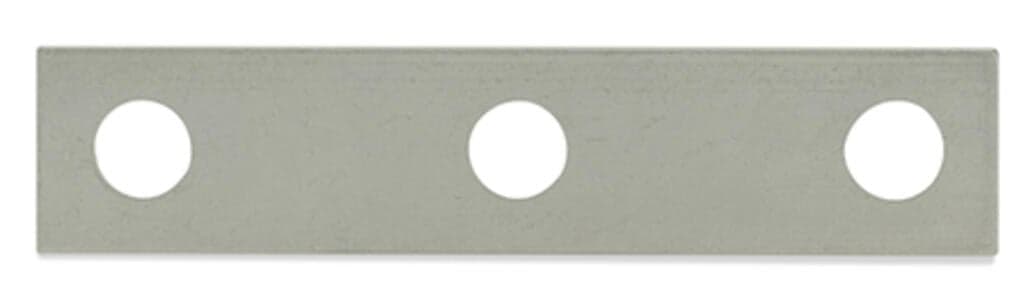

- 3Versatile Design: Three-way jumper for M6 stud bolts.
- 4Durable Construction: Silver-colored, unplated for long-lasting performance.
- 5Compliant with Industry Standards: Meets UL, CSA, and IEC/EN standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note (material data) | Information on material specifications can be found here | Color | silver-colored |
Weight | 24g | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 10?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055143941686 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated current | 125A |
Rated voltage UL (Use Group B) | 1000V | Rated current UL (Use Group B) | 130A |
Rated voltage UL (Use Group C) | 1000V | Rated current UL (Use Group C) | 130A |
Rated voltage UL (Use Group D) | 1000V | Rated current UL (Use Group D) | 130A |
Rated voltage CSA (Use Group B) | 1000V | Rated current CSA (Use Group B) | 115A |
Rated voltage CSA (Use Group C) | 1000V | Rated current CSA (Use Group C) | 115A |
Rated voltage CSA (Use Group D) | 1000V | Rated current CSA (Use Group D) | 115A |
Specifications may be subject to change without notice
