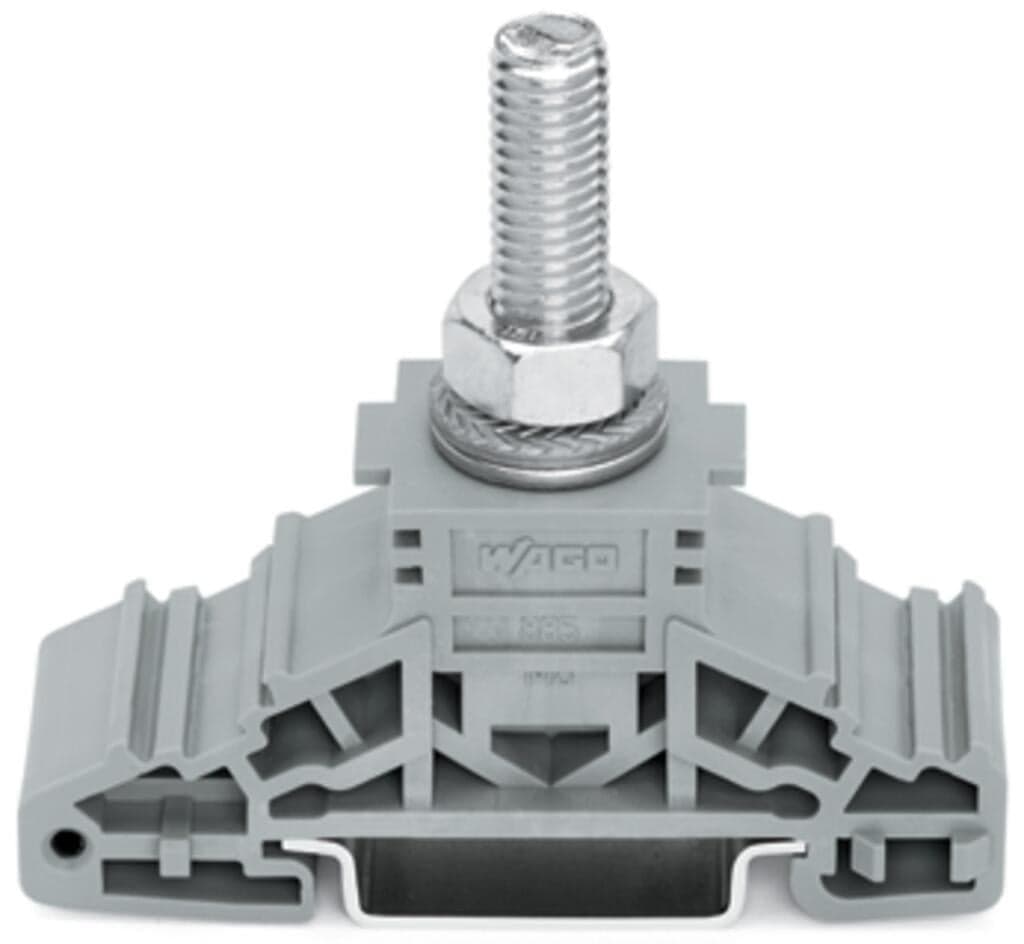

Product Model
885-108
Selling Points
- 1High Current Rating: Supports up to 150A for reliable power distribution.
- 2DIN-Rail Mounting: Easy installation on DIN-35 rail (35 x 15 or 35 x 7.5).
- 3M8 Stud Bolt: Secure connection with an M8 stud bolt for mechanical lugs or bars.
- 4Side Marking Slots: Convenient lateral marker slots for easy identification.
- 5Compliant with Standards: Meets C22.2 No 158 and UL 1059 approvals for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 22.8?mm?/ 0.898?inches |
Height | 67?mm?/ 2.638?inches | Depth from upper-edge of DIN-rail | 56.7?mm?/ 2.232?inches |
Tightening torque | 6 … 12?Nm | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.537MJ | Weight | 46.8g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4050821049234 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 150A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Power loss, per pole (potential) | 4.725W |
Rated current I<sub>N</sub> for specified power loss | 150A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | Bolt-type connection | Actuation type | Open-end, ring, socket wrench; 13 mm |
Connectable conductor materials | Copper | Clamping range | 2.5 … 50?mm2?/ 14 … 1/0?AWG |
Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors | Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors |
Thread size | M8 |
Specifications may be subject to change without notice
