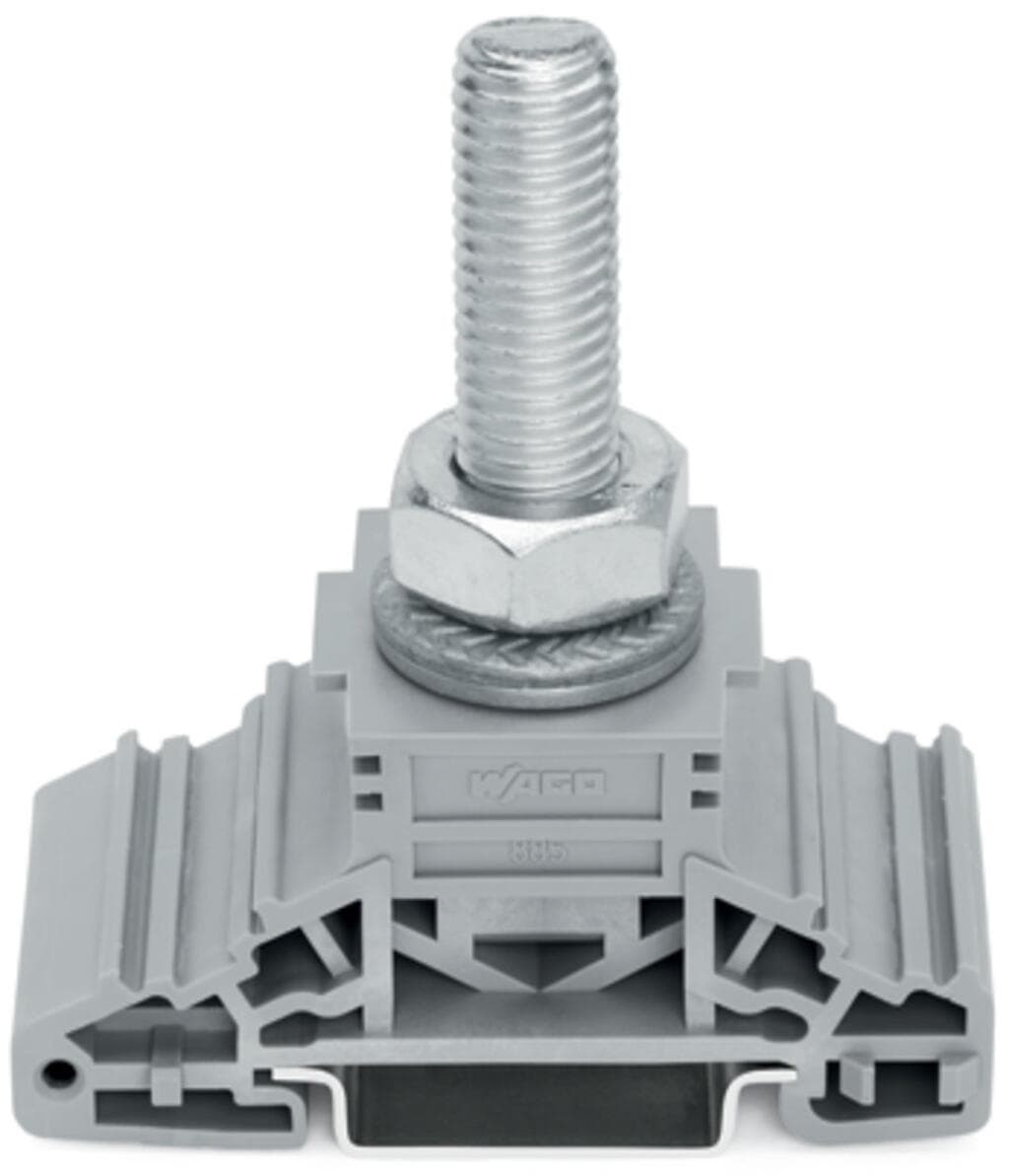

Product Model
885-112
Selling Points
- 1High-Rated Current Capacity: Supports up to 269A, ensuring reliable power distribution.
- 2DIN-Rail Compatibility: Mounts seamlessly on DIN-rail 35 x 15 and 35 x 7.5 for versatile installation.
- 3M12 Stud Bolt: Features an M12 stud bolt for secure mechanical lugs or bars.
- 4Gray Color and Side Marking Slots: Gray color with lateral marker slots for easy identification and organization.
- 5Comprehensive Certifications: Meets overvoltage category III and pollution degree 3 standards, certified by DEKRA and UL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 33.8?mm?/ 1.331?inches |
Height | 67?mm?/ 2.638?inches | Depth from upper-edge of DIN-rail | 64.7?mm?/ 2.547?inches |
Tightening torque | 10 … 20?Nm | Mounting type | DIN-35 rail |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Weight | 115.1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4050821092087 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 1000V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 269A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Power loss, per pole (potential) | 8.683W | Rated current I<sub>N</sub> for specified power loss | 269A |
Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | Bolt-type connection |
Actuation type | Open-end, ring, socket wrench; 19 mm | Connectable conductor materials | Copper |
Clamping range | 6 … 120?mm2?/ 10?AWG … 250?kcmil | Type of cable lugs per DIN 46234 | Cable lugs for solder-free connectionsRing type, without insulating sleeve, for copper conductors |
Type of cable lugs per DIN 46235 | Cable lugs for compression connectionsCover plate type for copper conductors | Thread size | M12 |
Specifications may be subject to change without notice
