Product Model

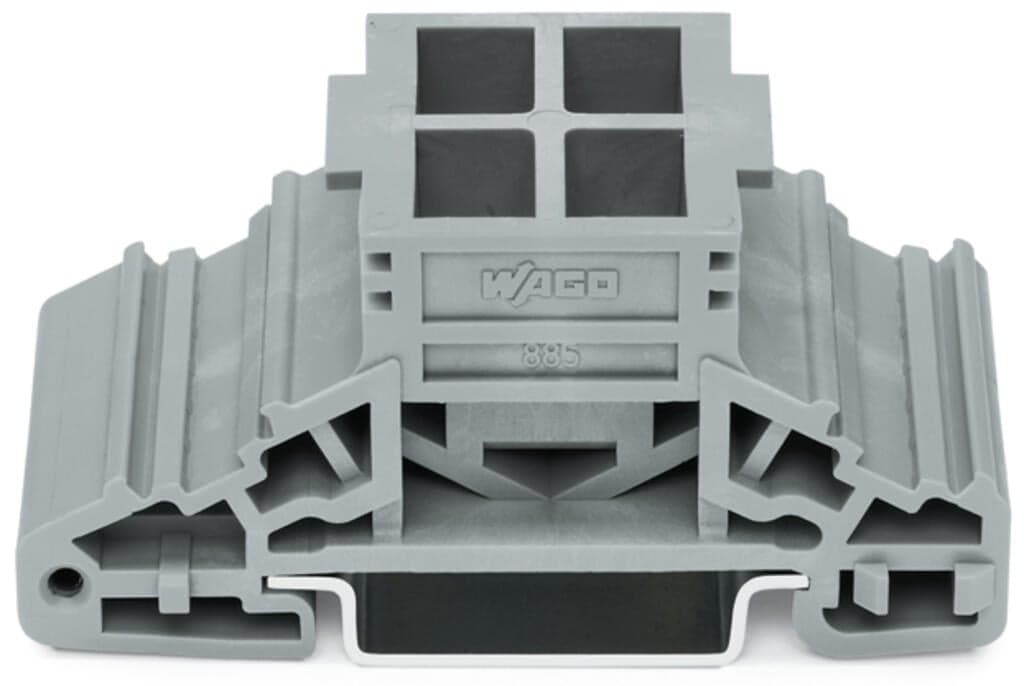

885-510
Selling Points
- 1Durable and robust construction for long-lasting performance.
- 2Versatile design suitable for various industrial applications.
- 3Easy installation with secure mounting options.
- 4High-quality materials ensure excellent insulation and protection.
- 5Customizable to fit specific project needs with multiple configurations available.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 33.8?mm?/ 1.331?inches | Height | 67?mm?/ 2.638?inches |
Depth from upper-edge of DIN-rail | 26.5?mm?/ 1.043?inches | Mounting type | DIN-35 rail |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.728MJ |
Weight | 26g | Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4050821049319 | Customs tariff number | 8547200000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
