Product Model
899-681/144-000
Selling Points
- 1Converts three-phase currents to single-phase (400 V/230 V).
- 22 inputs and 6 outputs for seamless integration.
- 3IP20 protection, ensuring reliable operation in various environments.
- 4Compatible with MIDI systems for diverse industrial applications.
- 5Made from high-quality materials like copper or copper alloy for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 190?mm?/ 7.48?inches | Height | 30?mm?/ 1.181?inches |
Depth | 145?mm?/ 5.709?inches | Internal wiring | 2.5mm2 |

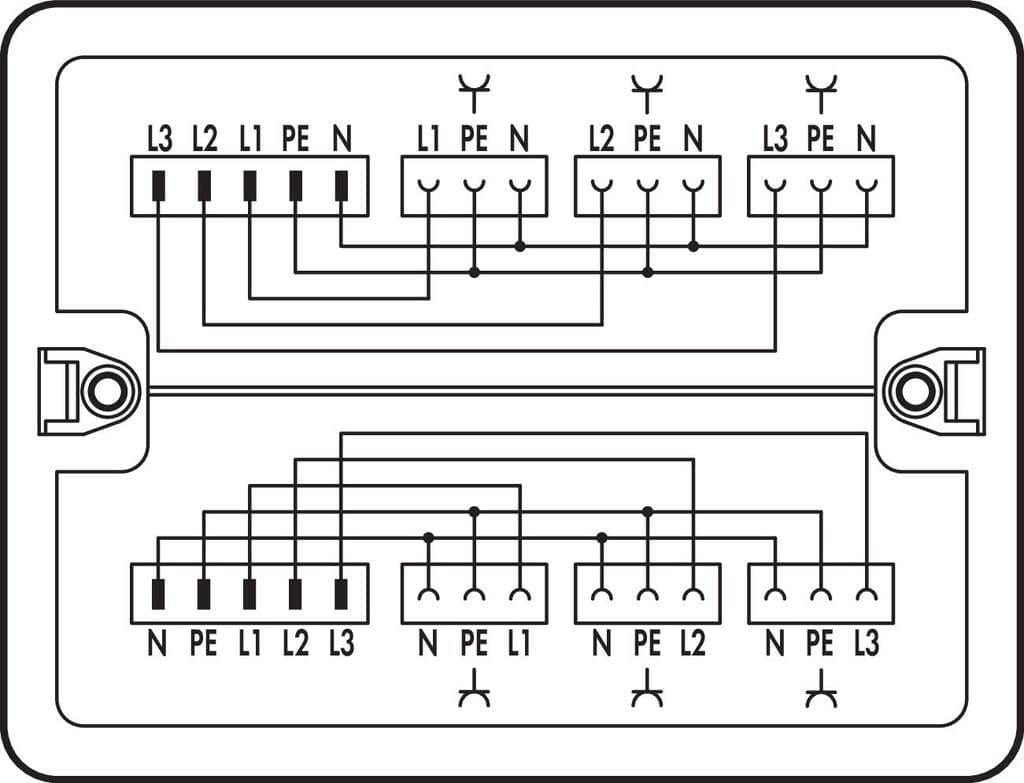

Use | Three-phase to single-phase current (400 V / 230 V) | Coding | A |
Mounting type | Wall, screw mount | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
Locking of plug-in connection | locking lever | Note (material data) | Information on material specifications can be found here |
Color | white | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 7.348MJ |
Weight | 367.7g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
ETIM 9.0 | EC002567 | ETIM 8.0 | EC002567 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143933384 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Note on contact resistance | approx. 1 m? contact resistanceapprox. 0.25 m? contact transition (plug/socket) | Connection type 1 | Input |
Connection type 2 | Output | Connection type 3 | Input |
Connection type 4 | Output |
Specifications may be subject to change without notice
